نام محصول:
پمپ پیستون هیدرولیک

نام انگلیسی:
Hydraulic piston pump PMS-PDS Series

برند:
FPT Fluid Power Technology

مشخصات:

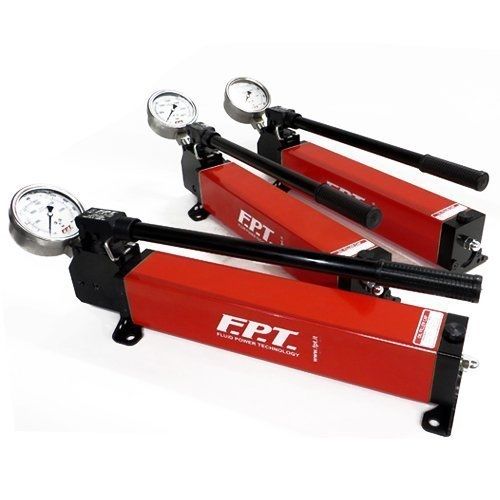

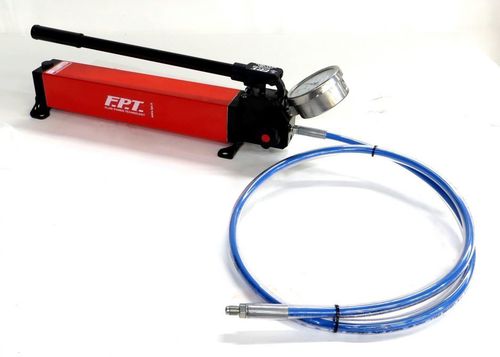

Very high pressure hydraulic hand pumps 1600 bar – 3000 bar and 4000 bar.

• Manual pumps for very high pressures, light, compact and easy to carry, made in aluminum

• At the maximum pressure, the 1600 bar and 3000 bar hand pumps develop a very low lever effort and the two flow rates with 40 cm3 / pumped in the approach phase allow rapid operations and less operator fatigue.

• Pumps equipped with the hole for mounting the pressure gauge directly on the head and the practical lever locking system for the transport. The anodizing and fire painting treatments complete the product, ensuring high resistance to wear and corrosion even in aggressive environments such as the offshore sector.

• Equipped with an internal safety valve set at the maximum working pressure.

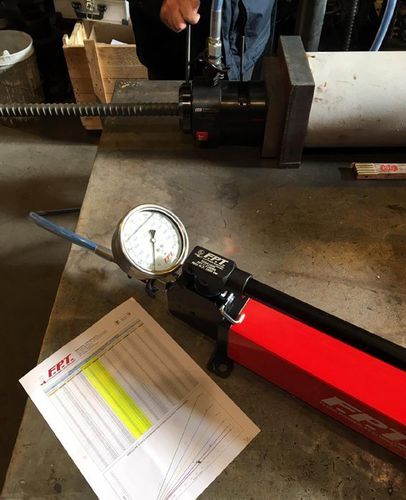

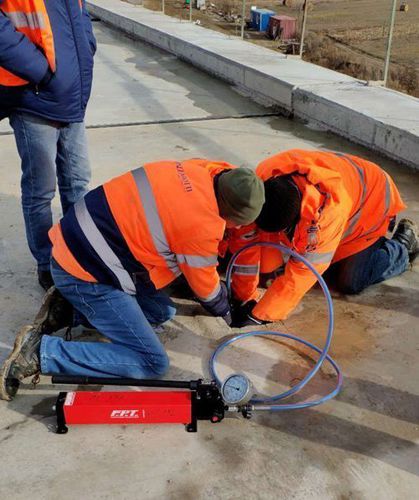

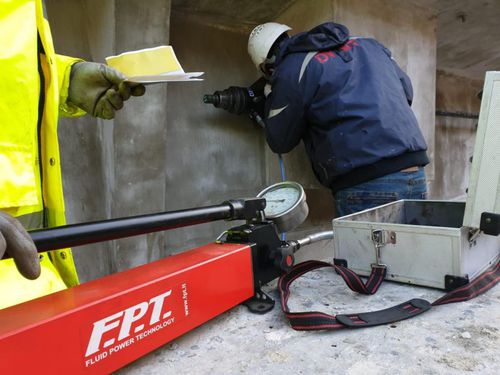

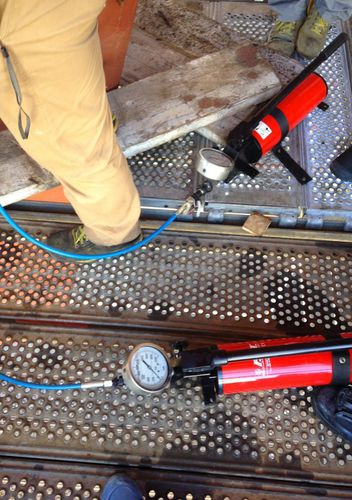

• Robust and functional pumps, typically used in the bolting sector for operating hydraulic bolt tensioners and hydraulic nuts. They are also indicated for the bearings installations, test benches, tank and pipe tests.

• Very high pressure hand pumps up to 4000 bar in single stage version.

Very high pressure hand pumps 1600 – 3000 – 4000 bar / 23000 – 43000 – 58000 psi

1600 3000 4000 bar hand pumps – very high pressure hydraulic hand pumps produced in light aluminum alloy of aeronautical derivation to reduce as much as possible the weight. Available in 3 versions with maximum operating pressure:

1600 bar / 23000 psi – Double stage high speed

3000 bar / 43000 psi – Double stage high speeed

4000 bar / 58000 psi – Single stage

توضیحات:
Type
piston

Operation
manual, hand, lever

Material
aluminum

Other characteristics
compact, two-stage, single-stage

Pressure
Max.: 4,000 bar(58,015 psi)Min.: 16 bar(232 psi)

Weight
8 kg(17.64 lb)
