نام محصول:
پمپ پیستون هیدرولیک

نام انگلیسی:
Hydraulic piston pump WP 116

برند:
DOA Hydraulic Tools Srl

مشخصات:

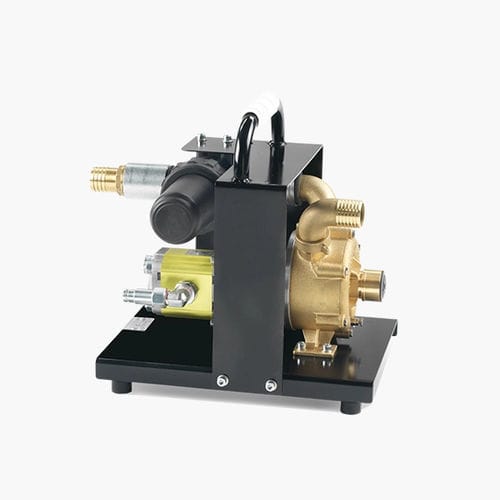

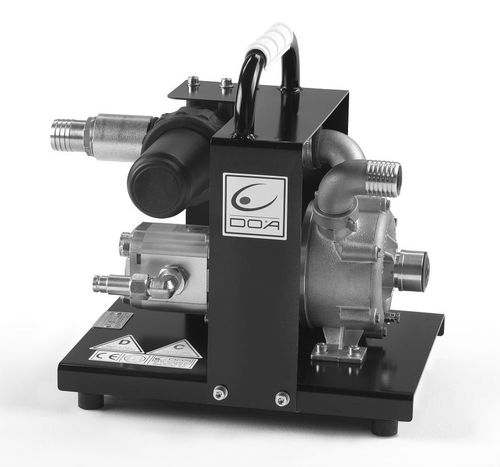

WP116 is a modern self priming water pump with hydraulic motor.

The pump is designed for the suction and evacuation of water that accidentally entered in the collecting siphons located in the lower parts of gas networks.

Water can enter into gas pipes after ruptures or maintenance interventions, this mass of water accumulated in the lower part of the network can fill up the siphons and also overflowing choking the pipes and preventing the normal free gas passage that inevitably flows away by “waves” causing water entering and damaging the gas meters and creating other problems that are well known by the gas maintenance crews.

WP116 is made in spark free bronze and with moving parts without metal/metal contacts so no possibility of creating localised overheated points. The hydraulic functioning (no electricity!) means implicit safety that has to be absolutely guaranteed in this delicate operation.

For the use is enough to connect the suction mouth of pump with a flexible hoses to the siphon and then prime and pump out the mixture water/gas/air, all in absolute safety and with the gas line in normal working condition. The fluid extracted has to be successively disposed according to local rules as it is a special waste.

WP116 is unique in its type, for characteristics, function and safety assurance cannot miss in the equipment of modern gas maintenance crews.

توضیحات:
Type
piston

Operation
hydraulic motor

Material
metal

Applications
water

Other characteristics
suction

Pressure
Max.: 210 bar(3,046 psi)Min.: 100 bar(1,450 psi)

Flow rate
Max.: 110 l/min(29.06 us gal/min)Min.: 20 l/min(5.28 us gal/min)

Weight
20 kg(44.09 lb)
