نام محصول:
پمپ پیستون هیدرولیک

نام انگلیسی:
Hydraulic piston pump MR series

برند:
BEZARES S.A.

مشخصات:
Bent Axis Piston Pumps FR and MR by Bezares are designed to deliver powerful hydraulic performance for demanding applications. Both FR and MR pumps are built with high-quality materials and advanced engineering, ensuring durability and reliability even in extreme conditions.

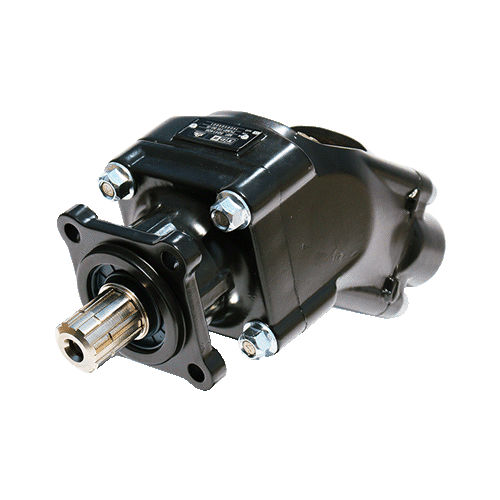

The heavy-duty FR bent axis piston pump is ideal for hydraulic systems that require high-performance operation, providing exceptional hydraulic performance. It has become an essential component for construction equipment, mining machinery, agricultural machinery, industrial equipment, marine applications, and other demanding applications.

FR Piston Pump User Manual

FR Piston Pump Data Sheet

Applications:

Construction equipment

Mining machinery

Agricultural machinery

Industrial equipment

Marine applications

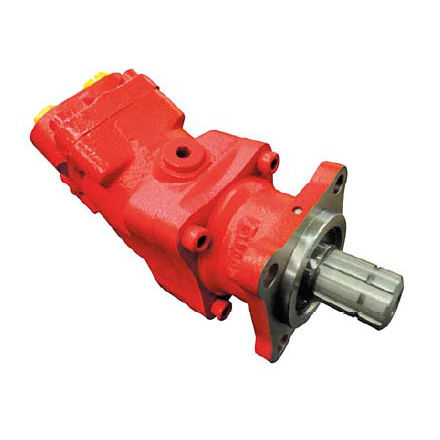

The medium-duty MR bent axis piston pump offers the same quality and reliability as the FR pump, but in a more compact and lightweight design. Its unique flow design provides optimal hydraulic performance for medium-duty hydraulic systems. As a result, it is an excellent choice for a wide range of applications.

MR Piston Pump user manual

MR Piston Pump Data Sheet

Applications:

Light industrial equipment

Forklifts

Cranes

Material handling equipment

Mobile machinery

Advantages:

High volumetric and mechanical efficiency: The FR and MR piston pumps maximize the flow and pressure of hydraulic fluid, offering high-precision hydraulic operation, resulting in increased productivity and efficiency when operating the application.

FR – Different options: You can configure your FR pump with different standards (ISO, SAE B, SAE BB) and thread types (GAS/BSP or SAE)

توضیحات:
Type
piston

Applications
handling

Other characteristics
compact, high-performance, fixed-displacement, mobile, heavy-duty, bent-axis, flow, small

Pressure
Min.: 50 bar(725 psi)Max.: 400 bar(5,802 psi)

Flow rate
Min.: 0 l/min(0 us gal/min)Max.: 220 l/min(58.12 us gal/min)

Speed
Min.: 1,400 rpm(8,796 rad.min-1)Max.: 2,800 rpm(17,593 rad.min-1)

Weight
Min.: 7.7 kg(16.98 lb)Max.: 15 kg(33.07 lb)

Power
Min.: 21 kW(28.55 hp)Max.: 93 kW(126.44 hp)
