نام محصول:
پمپ پیستون هیدرولیک

نام انگلیسی:

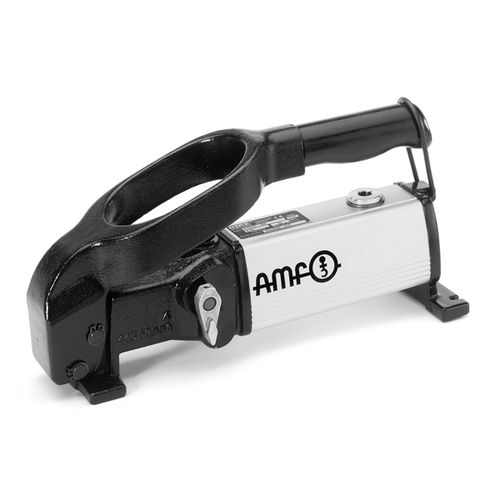

Hydraulic piston pump 6902

برند:
ANDREAS MAIER GmbH & Co. KG (AMF)

مشخصات:
Lightweight two-speed hand-pump. Low hand force required at max. operating pressure. Pump housing from malleable cast iron, oil reservoir from aluminium. With pressure relief valve, factory set at max. pressure of 700 bar. Hand pump complete with oil fill. Oil supply via threaded port.

Typical applications for the hand-pump are e.g. small clamping fixtures with irregular use, testing fixtures or for repair jobs. Please note, in case of a pressure drop the hand-pump is not capable of automatically maintaining system pressure.

Can be operated in horizontal position or vertical position with head facing downwards. Before putting in to operation open combined reservoir vent-and-relief cap. Care for proper air bleeding of connected hydraulic components. Special pumps for different fluids and pressure ratings are available upon request.

توضیحات:
Type
piston

Operation
manual

Pressure
Max.: 700 bar(10,153 psi)Min.: 50 bar(725 psi)
