نام محصول:
پمپ پیستون محوری هیدرولیک
نام انگلیسی:

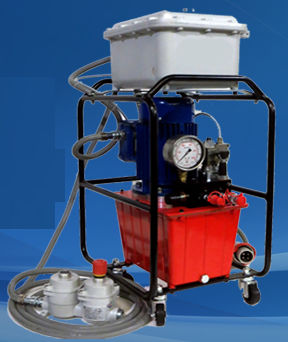

Hydraulic axial piston pump PHE-ATEX
برند:
TRITORC INC
مشخصات:
Hydraulic Pump With Three-phase Electric Motor.
ATEX Certified Version Ce Ex Ii 2 G K T3. ATEX Zone-2 Class T3 Gas Group IIA.
Three-phase electric motor 1.1 kW 440V Axial-piston pump mod.
Oil flow 9.4 litres/min @ 0-70 bar and 0.9 litres/min @ 700 bar. 3/2 solenoid valve 24 DC and inversion valve.
Pressure regulator on P line to set the torque value.
Adjustable Relief Valve on return line.
Pressure gauge DN 100 0-1000 bar. Reservoir Capacity 10 litres.
Recommended hydraulic oil ISO 32.
The pump includes remote control and electric box.
Also available in air operated type (PAE – ATEX).
توضیحات:
Type
axial piston
Operation
electric
Applications
for industrial applications
Other characteristics
three-stage, ATEX
Pressure
Max.: 700 bar(10,153 psi)Min.: 0 bar(0 psi)
