نام محصول:
پمپ پیستون محوری هیدرولیک
نام انگلیسی:

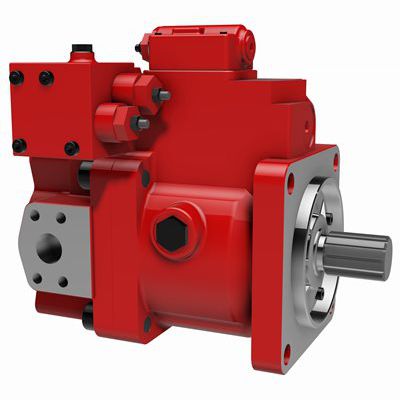

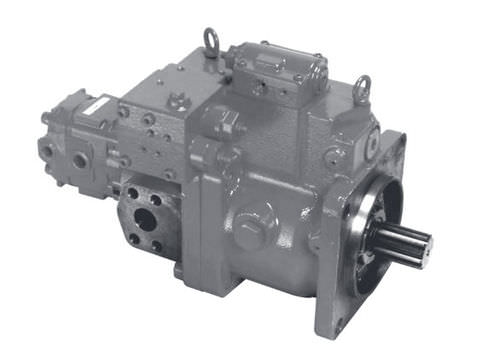

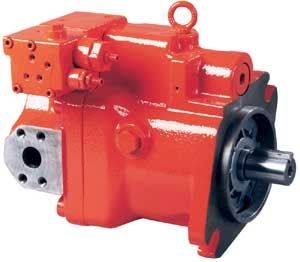

Hydraulic axial piston pump K3VL series
برند:
Kawasaki Precision Machinery
مشخصات:
The K3VL series swash plate type axial piston pumps are designed to satisfy a variety of construction and off-highway applications where a medium to high pressure variable displacement pump is required.
> 28 to 200cc displacements
> 320 bar continuous pressure rating
> Load sensing, torque limiting and electronic displacement control
> Integral impellor pump available on 200cc unit
توضیحات:
Type
axial piston
Applications
for industrial applications
Other characteristics
compact, variable-displacement, high-speed, ATEX
Pressure
320 bar(4,641 psi)
Speed
Max.: 3,000 rpm(18,850 rad.min-1)Min.: 1,900 rpm(11,938 rad.min-1)
Weight
Max.: 130 kg(286.6 lb)Min.: 20 kg(44.09 lb)
Fluid temperature
Max.: 80 °C(176 °F)Min.: -20 °C(-4 °F)
