نام محصول:
پمپ پیستون محوری هیدرولیک
نام انگلیسی:

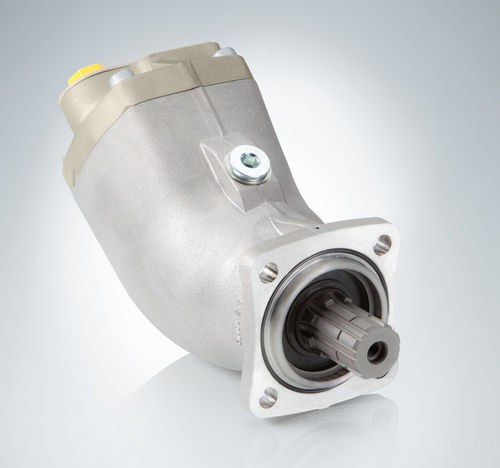

Hydraulic axial piston pump K61N series
برند:
HAWE Hydraulik SE
مشخصات:
The axial piston pump type K60N is designed for open circuits in mobile hydraulics and operates on the bent axis principle. The pump is fitted mainly to the power take-off on commercial vehicle transmissions.
The axial piston pump type K61N is designed for open circuits in mobile hydraulics and operates on the bent axis principle. The pump is fitted mainly to the power take-off on commercial vehicle transmissions.
Features and advantages
Optimized power-to-weight ratio
Different shaft and flange versions
Smooth running across entire speed range
Low heat generation
Intended applications
Municipal trucks
Fire trucks
Loading cranes and elevating work platforms
Tipper trucks and skip trucks
Suction dredgers and sewer cleaning vehicles
توضیحات:
Type
axial piston
Applications
for vehicles, for power take-off, open circuit
Other characteristics
high-speed
Pressure
400 bar(5,802 psi)
Flow rate
Max.: 162 l/min(42.8 us gal/min)Min.: 6 l/min(1.59 us gal/min)
Speed
500 rpm, 1,000 rpm, 1,500 rpm(3,142 rad.min-1, 6,283 rad.min-1, 9,425 rad.min-1)
Weight
Max.: 13.9 kg(30.64 lb)Min.: 6.9 kg(15.21 lb)
Fluid viscosity
Max.: 0.7 m²/sMin.: 0.01 m²/s
Fluid temperature
Max.: 80 °C(176 °F)Min.: -40 °C(-40 °F)
Power
Max.: 71 kW(96.53 hp)Min.: 8 kW(10.88 hp)
