نام محصول:
پمپ پیستون محوری هیدرولیک
نام انگلیسی:

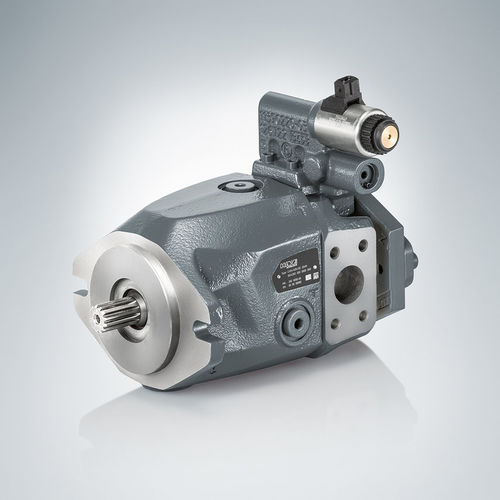

Hydraulic axial piston pump C40V series
برند:
HAWE Hydraulik SE
مشخصات:
The axial piston pump type C40V is designed for open circuits in mobile hydraulics and operates on the swash plate principle.
The large selection of different pump controllers allows the axial piston pump type C40V to be used in a variety of applications.
Features and advantages:
Optimized power-to-weight ratio
Broad selection of controllers
High self-suction speed
Thru-shaft compatibility
توضیحات:
Type
axial piston
Applications
open circuit
Other characteristics
compact, suction
Pressure
280 bar(4,061 psi)
Flow rate
Min.: 0 l/min(0 us gal/min)Max.: 150 l/min(39.63 us gal/min)
Speed
Min.: 100 rpm(628 rad.min-1)Max.: 3,300 rpm(20,735 rad.min-1)
Weight
Min.: 14.6 kg(32.19 lb)Max.: 42.5 kg(93.7 lb)
Fluid temperature
Min.: -20 °C(-4 °F)Max.: 80 °C(176 °F)
Power
44.2 kW, 65.1 kW, 96.4 kW, 115.9 kW(60.1 hp, 88.51 hp, 131.07 hp, 157.58 hp)
