نام محصول:
پمپ پیستون محوری هیدرولیک
نام انگلیسی:

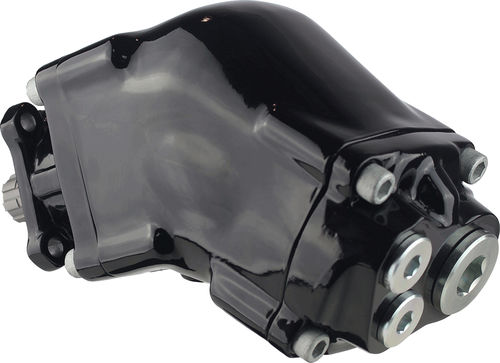

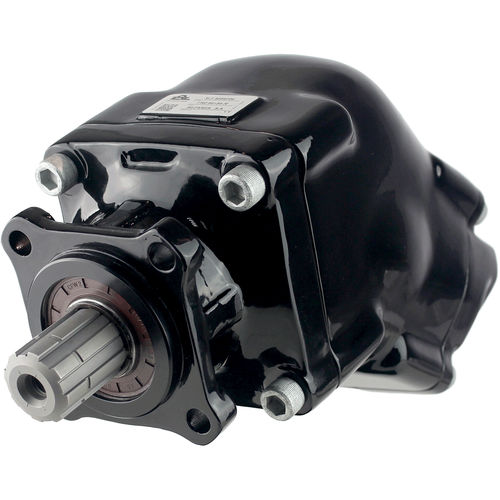

Hydraulic axial piston pump FR2
برند:
BEZARES S.A.
مشخصات:
The Bezares FR2 reinforced double flow piston pump, also known as the Twin Flow piston pump, is a powerful hydraulic pump designed to provide high-speed and accurate operation for applications that require two different flows within the same circuit. Its exceptional performance makes it a must-have for demanding hydraulic systems.

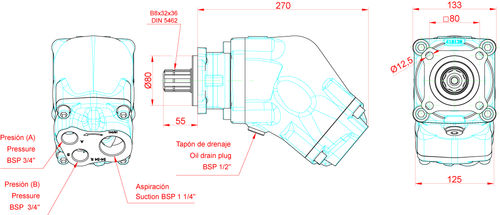

FR2 Technical datasheet
With a unique dual-flow design, the FR2 Twin Flow piston pump enables the independent operation of two simultaneous hydraulic systems, delivering high efficiency and outstanding hydraulic performance. Built using high-quality materials and advanced engineering techniques, this double flow piston pump ensures durability and reliability even in extreme conditions.
Advantages:
Two independent flows in a single pump: The FR2 Double Flow Piston Pump Twin Flow Heavy Duty allows for the independent operation of two pressure lines, making it a versatile solution for various applications.
Continuous work cycles: Designed with a robust structure, minimal rotating parts, and top-quality materials, the FR2 Twin Flow pump is engineered for long-lasting performance.
Compact and lightweight: The FR2 double flow piston pump offers the same quality and reliability as the heavy-duty FR pump but in a more compact and lightweight design. Its unique flow design delivers optimal hydraulic performance for medium-duty hydraulic systems, making it an excellent choice for a wide range of applications.
Ideal for various applications, the FR2 Twin Flow double flow piston pump is suitable for:
Mining industry machinery
Large truck loadersç
Forestry cranes
Hook loaders
Combined dump and crane applications
Garbage collection vehicles
توضیحات:
Type
axial piston
Other characteristics
high-performance, dual-flow
Pressure
Max.: 400 bar(5,802 psi)Min.: 50 bar(725 psi)
Flow rate
Max.: 110 l/min(29.06 us gal/min)Min.: 20 l/min(5.28 us gal/min)
Speed
Max.: 2,000 rpm(12,566 rad.min-1)Min.: 400 rpm(2,513 rad.min-1)
Weight
19 kg(41.89 lb)
Power
71 kW, 79 kW, 93 kW(96.53 hp, 107.41 hp, 126.44 hp)
