نام محصول:

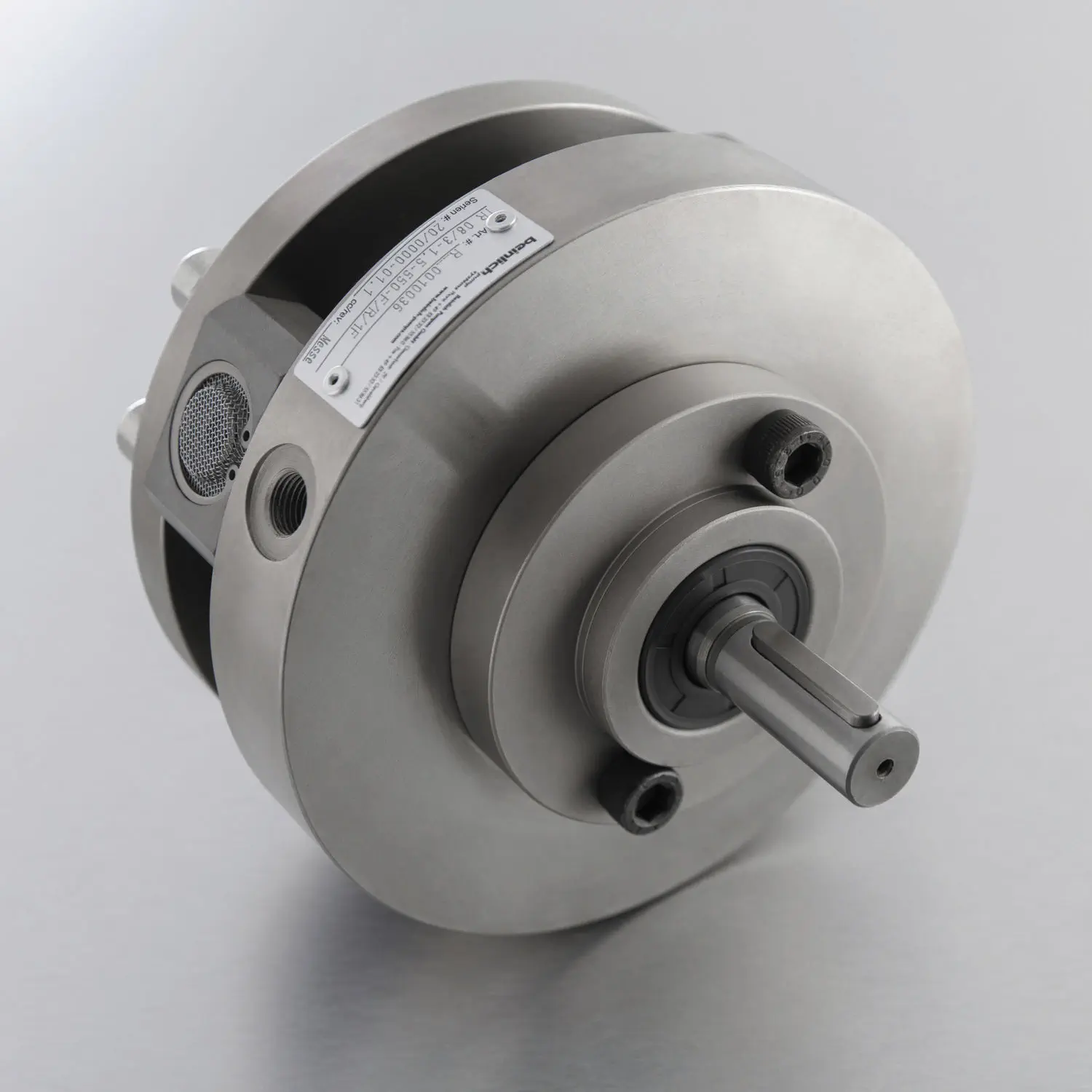

پمپ پیستونی شعاعی سری TRD / TRG
نام انگلیسی:
Radial piston pump TRD / TRG series
برند:
Beinlich Pumpen
مشخصات:
Fluid
water
Operation
magnetic-drive
Priming
submersible
Technology
radial piston
Mobility
stationary
Domain
for hydraulic fracturing
Applications
high-pressure, for high-pressure applications
Fluid specification
for engine oil
Protection level
submersible
Other characteristics
multi-stage
Flow
Min.: 0 l/min
(0 us gal/min)
Max.: 8.576 l/min
(2.26554 us gal/min)
Pressure
Min.: 200 bar
(2,900.755 psi)
Max.: 700 bar
(10,152.642 psi)
Fluid temperature
Min.: -30 °C
(-22 °F)
Max.: 150 °C
(302 °F)
توضیحات:
Radial piston pumps
The TR / TRG radial piston pump was designed for the high pressure range up to 700 bar and for uncritical, clear media. The pump is available in different versions.
Moreover, Beinlich offers the product series TRD/TRGD with coated pistons for poorly and non-lubricating media.
Additionally, various seals can be assembled to meet the different requirements (triple shaft seal with block chamber, mechanical seal with block chamber or magnetic coupling).
Performance data
Displacements 0.42 up to 42.88 cc/rev
Speed 300 up to 2,000 rpm
Viscosity 0.4 up to 2,000 mPas
Application areas
Test stands
High pressure hydraulics
High pressure dosing
Advantages of the radial piston pumps
High pressure range
For low viscosity applications
Different coatings
Wear protection
Different sealing options (incl. magnetic coupling)
For process applications
