نام محصول:

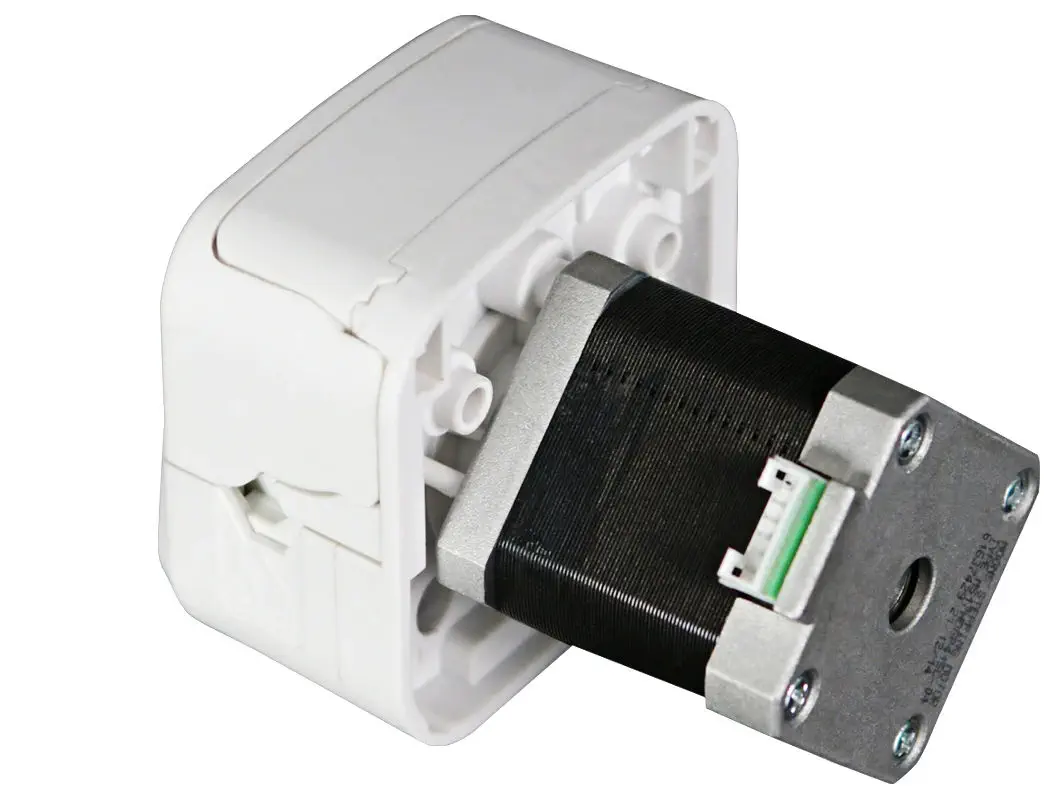

پمپ پریستالتیک KK300-ST
نام انگلیسی:
Peristaltic pump KK300-ST
برند:
Kamoer Fluid Tech (Shanghai) Co.,LTD.
مشخصات:
Domain
industrial
Applications
transfer, dosing, circulation, distribution, treatment, washing, sampling
Material
plastic
Fluid specification
for aggressive media, for low-viscosity fluids, for viscous fluids, for corrosive fluids, for high-viscosity fluids
Voltage
24 V
Other characteristics
high-power
Flow
Min.: 0.001 l/min
(0.00026 us gal/min)
Max.: 0.485 l/min
(0.12812 us gal/min)
Pressure
Min.: 0 bar
(0 psi)
Max.: 2 bar
(29.008 psi)
Head
Min.: 0 m
(0’00” )
2 m
(6’06” )
Power
36 W
(0.05 hp)
Fluid temperature
Min.: 0 °C
(32 °F)
Max.: 70 °C
(158 °F)
Length
90 mm
(4 in)
Width
66.4 mm
(2.61 in)
Height
67 mm
(2.64 in)
Weight
483 g
(17.04 oz)
توضیحات:
Powerful Stepper Motor- 6000Hs
The Max RPM is 600, reaches 485ml/min.(For intermittent work only)
300RPM supports continuous working mode
Easy to operate, can quickly replace the pump tube;
High precision, low noise, simple structure, maintenance-free
Two tube clamp positions:
① 0.8~4.8mm inner diameter silicone tube
② 0.8~3.2mm inner diameter BPT tube.
