نام محصول:
پمپ هیدرولیک پمپ اندازه گیری
نام انگلیسی:

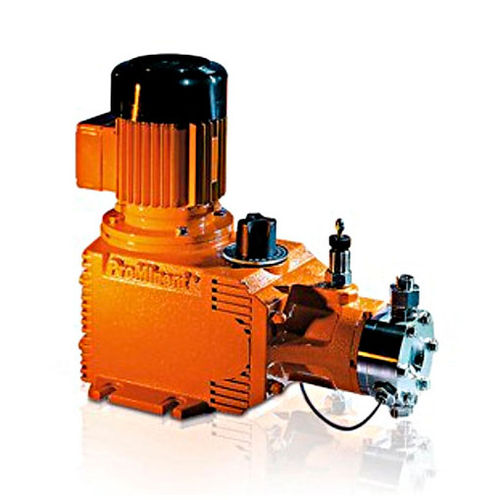

Metering pump hydraulic pump HYDRO API
برند:
ProMinent Group
مشخصات:
The HYDRO API 675 is an extremely robust hydraulic diaphragm metering pump, which meets the most exacting safety requirements and is designed in accordance with API 675. This is ensured by the PTFE multi-layer diaphragm with diaphragm monitoring, the full-motion drive and automatic bleeding, for example. Its modular construction makes it extremely versatile.
Your benefits
Excellent process reliability:
PTFE multi-layer diaphragm with integrated diaphragm monitoring with condition signals
Integrated hydraulic relief valve with ventilation function
Metering reproducibility is better than ± 1% in the 10-100% stroke volume range under defined conditions and with correct installation.
Excellent flexibility:
The modular construction with single and double-head versions permits a wide range of applications, with the double-head designs (boxer principle) being operated in push-pull mode
It is possible to combine up to 5 metering units, even with different pump capacities, in multiple pump systems
5 different gear ratios are available
توضیحات:
Type
gear
Operation
with electric motor
Material
PTFE
Applications
fuel oil
Other characteristics
oil, modular, membrane, for metering pumps
Pressure
Min.: 7 bar(102 psi)Max.: 100 bar(1,450 psi)
Flow rate
Min.: 7 l/h(1.85 us gal/h)Max.: 1,506 l/h(397.84 us gal/h)
