نام محصول:
پمپ هیدرولیک هیدرو پنوماتیک
نام انگلیسی:

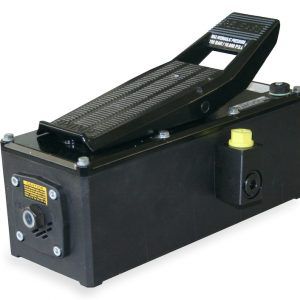

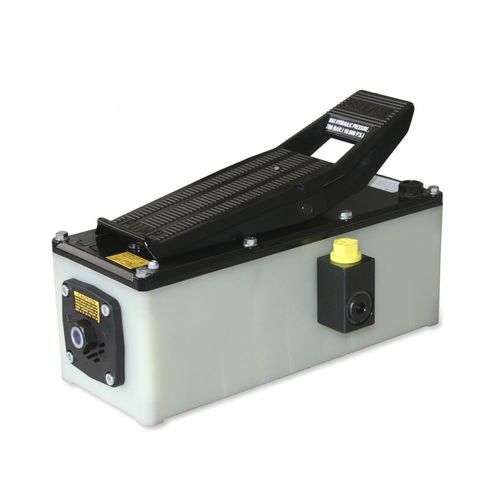

Hydro-pneumatic hydraulic pump HP1000
برند:
BELL S.R.L.
مشخصات:
Like all the pumps of the HP Series, it is suitable for any hydraulic application which require very high hydraulic output pressures and a moderate and controllable oil flow, to ensure the best precision during the operations.
Suitable for use in multiple applications: industrial tools, lifting systems, car repair, clamping systems, hydraulic equipment (presses, jacks, …), tire changers, bead breakers, automotive.
Single acting air-hydraulic pump with pedal operation 1000bar-HP1000: main features
Operated through pedal
Unmistakable pedal design with handle for portability
3-position pedal operation with spring return (advance, hold and return)
Single-acting cylinder compatibility (double-acting with optional in-line distributor)
Compact and sturdy construction for heavy duty and long life
Easy maintenance
No air lubricated required
Connectable to the normal pneumatic network
Versatile use in both horizontal and vertical positions
Helical vent screw on the lid for tank ventilation during use
Preset safety valve on the cover against any overload in the pump
Externally adjustable oil pressure relief valve against any overload
Rotating oil port for easy connection to the hydraulic system and improved mobility
Slots on the base support for easy installation and fixing to the system
Lightweight
Low noise (80dBa)
1.4 L tank capacity for small and large cylinders (other versions available SL 2.5l and XL 4L)
توضیحات:
Type
piston, helical gear, screw
Operation
foot-operated, pneumatic
Other characteristics
single-acting, compact, low-noise, double-acting, portable, adjustable, lubricated, in-line, horizontal, vertical, with tank, small, spring, hydro-pneumatic
Pressure
250 bar, 350 bar, 500 bar, 700 bar, 1,000 bar(3,626 psi, 5,076 psi, 7,252 psi, 10,153 psi, 14,504 psi)
Flow rate
Max.: 0.8 l/min(0.21 us gal/min)Min.: 0.1 l/min(0.03 us gal/min)
Weight
5.3 kg(11.68 lb)
