نام محصول:
پمپ هیدرولیک محور هوا
نام انگلیسی:
Air-driven hydraulic pump X63
برند:
Pascal Corporation
مشخصات:
Functions

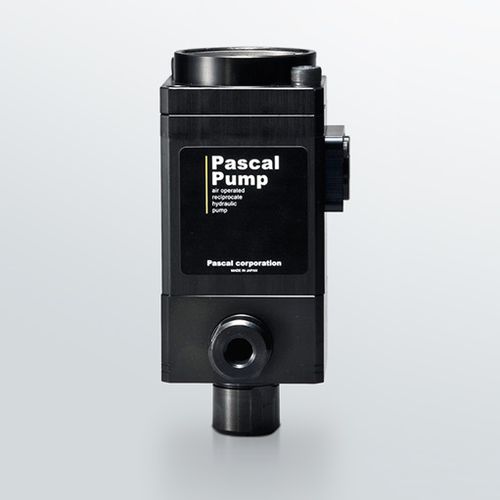

● Pascal pump is a compact but reliable hydraulic pump, which converts a compressed air force into high-pressure hydraulic power.
● Boosting ratio can be selected from 9.4 to 95 times in 6 models.
● Secure and high speed reciprocation of air and hydraulic piston generates a repetitive suction and discharge of air and oil. As the hydraulic pressure becomes close to the designated level, the reciprocation becomes slower. At the designated hydraulic pressure, the driving air force and hydraulic force become balanced to maintain the pressure.
● At the balanced condition, there is no air consumption so that there is no power loss or temperature rise compared to an electric pump.
● If there is a decrease in the downstream holding pressure, the pump immediately reacts to start reciprocating to recover the pressure loss.
Features
● Air Driven & Super Compact
Unique air driving design enables a smaller and lighter body.
● Mobility with High Performance
Due to the high durability and impact-resistance for its size, it can be easily installed in a narrow or limited space.
● Highly Reliable Mechanism
In order to secure stable reciprocating movement ranging from 1 cycle / hour to 2000 cycle / minute, various technical know-how are incorporated.
توضیحات:
Type
reciprocating
Operation
air-driven
Other characteristics
compact, high-pressure, suction
Pressure
Min.: 2 bar(29 psi)Max.: 70 bar(1,015 psi)
