نام محصول:
پمپ هیدرولیک جابجایی متغیر
نام انگلیسی:
Variable-displacement hydraulic pump HSP – VERSION 31 series
برند:
HYDRAUT
مشخصات:

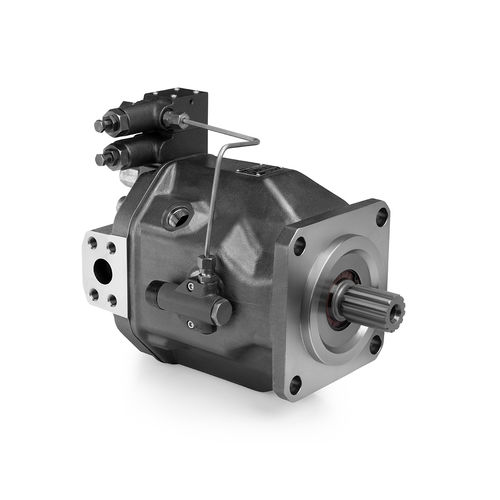

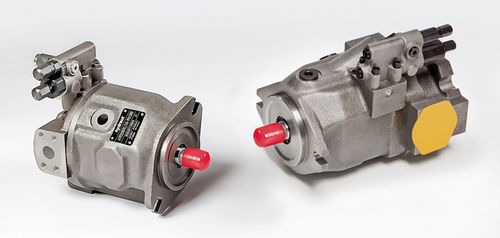

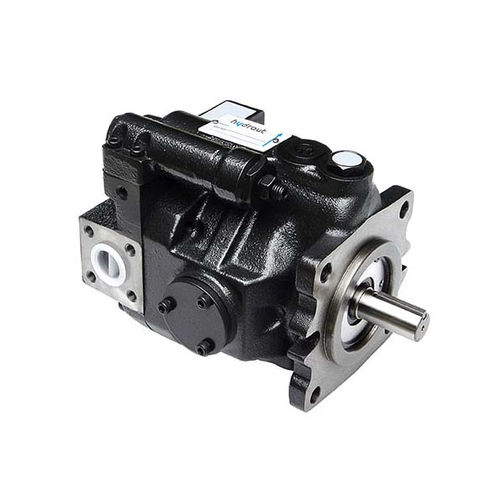

HSP Axial piston pumps – interchangeable with A10VSO pumps
Axial piston pump HSP in swashplate design is used for hydraulic transmissions in open loop circuits.
By adjusting the position of the swashplate, it is possible to smoothly vary the flow.
FEATURES:
Sizes from 18cc to 140cc.
Axial piston swashplate design.
Open circuits.
Rear and side ported.
Thru drive auxiliary mounting flange.
Suitable for industrial and mobile applications.
Low noise levels.
Controllers available: Pressure, Pressure/Flow, Pressure/Flow/Power.
ADVANTAGES:
Available ready to be shipped industrial version (interchangeable to series A10VSO) and mobile (interchangeable to series A10VO).
Cross reference with Caterpillar and Komatsu OEM codes.
Spare parts totally interchangeable to Rexroth A10VO pumps.
Delivery in 24 hours.
Repair of any piston pumps with warranty of 24 months.
توضیحات:
Type
axial piston, single-piston
Applications
for industrial applications, for hydraulic powerpacks
Other characteristics
low-noise level, variable-displacement, mounting flange
Pressure
Max.: 350 bar(5,076 psi)280 bar(4,061 psi)Min.: 0 bar(0 psi)
Flow rate
Max.: 252 l/min(66.57 us gal/min)Min.: 59 l/min(15.59 us gal/min)
Speed
3,000 rpm(18,850 rad.min-1)
