نام محصول:
پمپ هیدرولیک الکترولیک
نام انگلیسی:
Electro-hydraulic hydraulic pump EDPH700DE
برند:
BELL S.R.L.
مشخصات:

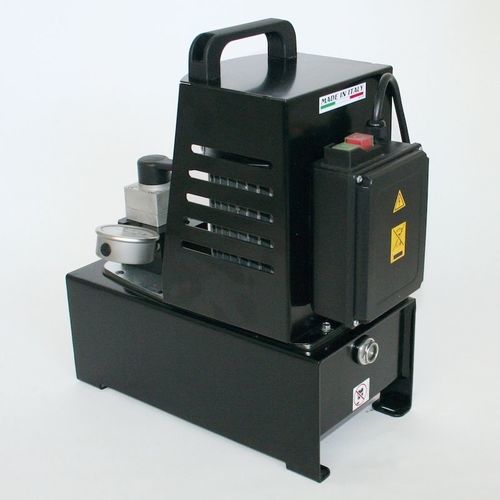

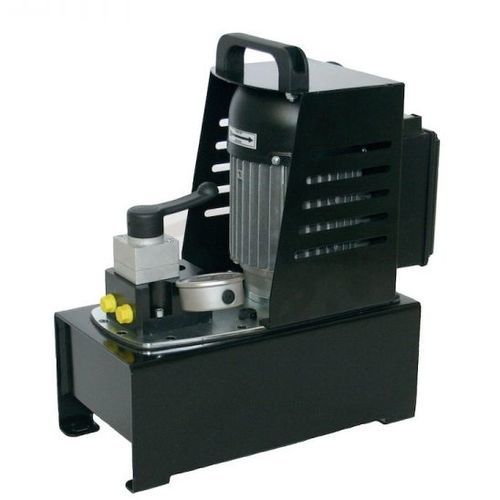

Practical and functional, the ultra-compact EDPH700DE electro-hydraulic power pack is powered by AC 230V power source, it is double-stage and double-acting through a 4/3 way hand distributor valve, with a high flow rate and an operating pressure up to 700bar
Among the electro-hydraulic power units of the EDP Series manufactured by BELL there is the EDPH700DE double stage and double acting pump with an oil capacity of 5L. Push-button operated (electric motor) and a 4/3 way hand valve, it is recommended for any hydraulic application where an adequate oil flow rate (l / min) and an operating pressure up to 700bar are required. Functional and versatile, it has an extremely compact design with ergonomic handle and motor protection casing and is particularly suitable for guaranteeing maximum efficiency and long life, even in heavy use.
EDP Series:
Product line: Industrial tools, bodywork, auto repairers, lifting systems, clamping systems, punches, hydraulic cutters, bead breakers, shearing machines
Main features:
Ultra compact
Double HAWE piston pump with cylindrical shaft
Operation with external power supply (socket)
Motor protection casing for heavy duty and durability
Extremely compact design with ergonomic handle for maximum portability
Push button operation (electric motor)
Hand valve 4/3 700bar
Double acting cylinder compatibility
Easy maintenance
Refill oil cap
Preset internal maximum oil pressure output valve to protect the circuit parts against overloads
Pressure gauge
Extremely lightweight
Low noise
Oil tank capacity 5L
توضیحات:
Type
piston
Operation
hand, electric, electro-hydraulic
Other characteristics
compact, oil, double-acting, double, two-stage, flow, oil pressure
Pressure
700 bar(10,153 psi)
Flow rate
0.3 l/min, 3.7 l/min(0.08 us gal/min, 0.98 us gal/min)
Weight
24.5 kg(54.01 lb)
