نام محصول:
پمپ هوا
نام انگلیسی:
Air pump PA series
برند:
VUOTOTECNICA
مشخصات:

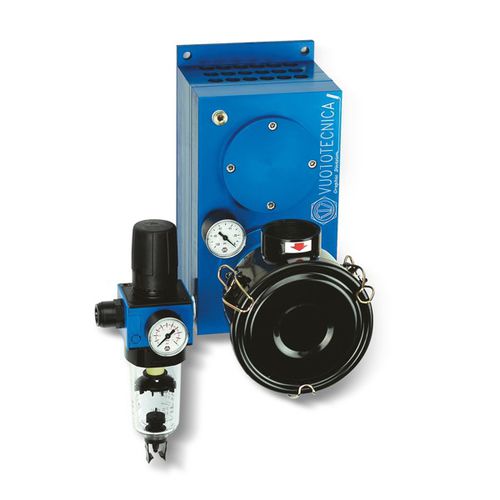

Pneumatic suction pumps PA
A state of the art range of ejectors has allowed creating this range of pneumatic suction pumps featuring an excellent ratio between the amount of consumed air and sucked air, as well as the ability to adjust the vacuum level and capacity according to the supply air pressure.
These pumps are supplied by compressed air with a pressure ranging from 1 to 6 bar (g), and they can produce a maximum vacuum of 90% and a suction capacity between 15 and 320 cum/h, measured at a normal atmospheric pressure of 1013 mbar.
When designing these pumps our attention was focused on noise. In fact, they are perfectly soundproofed and there are no moving parts subject to wear and vibrations. All this results in an extremely silent operation.
Moreover, being based on the Venturi principle, they do not develop heat.
As a standard, they are equipped with a filter/pressure reducer unit for the supply air and a filter with microporous cartridge located on the suction inlet connection which can keep the finest dust and impurities.
The excellent compressed air and sucked filtration allows blowing air free from oil vapours, water condensation and impurities in the work environment, causing no pollution.
The use of light alloys for making these pumps has allowed a considerable reduction of their weight thus allowing them to be directly installed onto the machine. Thanks to their static operating principle, maintenance is reduced to a simple regular cleaning of the filters.
توضیحات:
Fluid
air
Operation
pneumatic
Domain
industrial
Other characteristics
suction, adjustable-flow, Venturi, soundproof, with gear reducer
Flow
Min.: 15 m³/h(529.72 ft³/h)Max.: 320 m³/h(11,300.69335 ft³/h)
Pressure
Min.: 1 bar(14.504 psi)Max.: 6 bar(87.023 psi)
