نام محصول:
پمپ هوا
نام انگلیسی:
Air pump BIVOC2V2
برند:
Umweltanalytik Holbach GmbH
مشخصات:

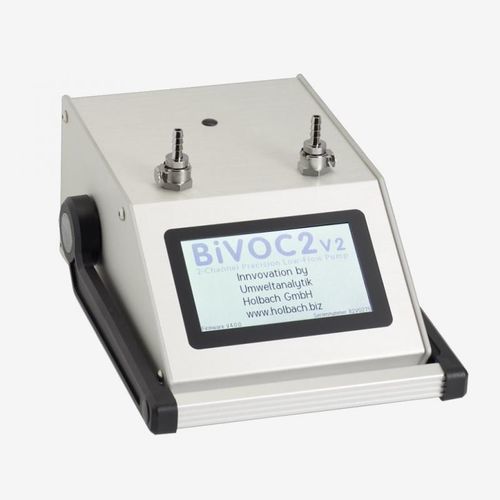

The compact 2-channel pump BiVOC2V2 allows you to perform simultaneous dual air-samplings in the low volume flow range starting at 0.1 l/min.
Perfectly suited for air-samplings on TENAX sample-media with 0.1 SL/min volume flow.
Of course, other sample-media can be loaded as well – such as activated carbon tubes, DNPH cartridges and silica gel – with a volume flow of max. 2.0 l/min*.
*The maximum achievable flow rate is determined by the differential pressure dependent on the sample-medium.
2 individually controlled channels
Sampling volumes preselectable from 0.5 up to 5,000 liters
Start delay from 1 second up to 24 hours
Interval mode to extend the the sampling duration for combined samplings with the same time window
Illuminated 4.3 inch color display with touch operation
Connector for external temperature/humidity sensor HC2A-S
Integrated barometric sensor
Ring buffer for data of the recent 100 samplings including the sampling process data (logging)
Integrated testing programs

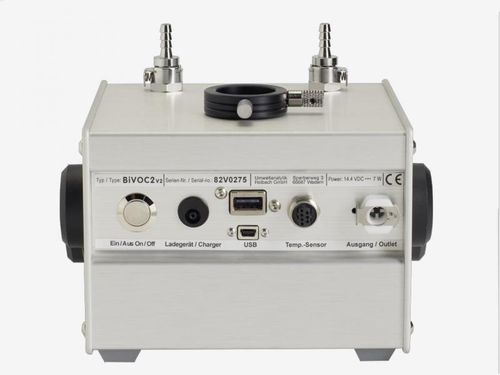

USB interface for PC connection
USB interface for memory stick to export the sampling data
Maintenance-free membrane pump with controlled brushless drive
Lockable plug-in couplings with 3/16” hose nipples

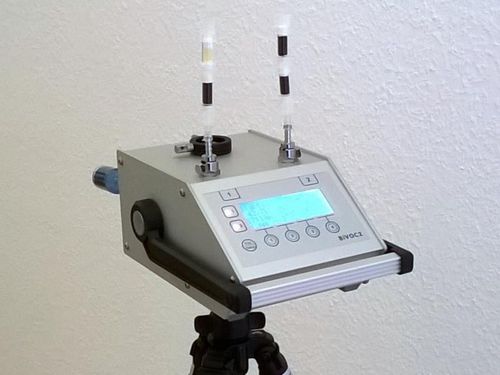

Robust anodized aluminum housing with two tripod sockets
The high target volume range of up to 5000 liters allows to use the BiVOC2V2 to generate a precise exchange rate for air in test chambers – along with “automatic” documentation when data logging is enabled.
Sampling is becoming even more easy and relibale with BiVOC2V2:
Connect sample medium
Select preset program
Press start
توضیحات:
Fluid
air
Operation
manual
Priming
self-priming
Technology
side-channel
Mobility
mobile
Domain
industrial
Applications
process, sampling, test
Material
aluminum
Protection level
maintenance-free, robust
Other characteristics
compact, flow, combined, brushless, integrated, sensor
Flow
Min.: 0.05 l/min(0.01321 us gal/min)Max.: 2 l/min(0.52834 us gal/min)3.2 l/min(0.84535 us gal/min)
