نام محصول:
پمپ هوا
نام انگلیسی:

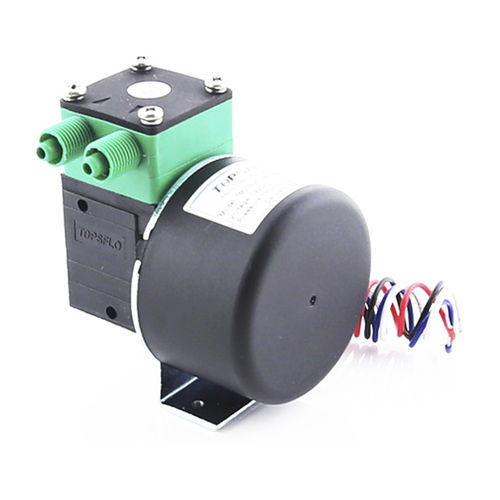

Air pump TM30B-H
برند:
TOPSFLO INDUSTRY AND TECHNOLOGY CO., LIMITED
مشخصات:
Mini Diaphragm Vaccum Pump TM30B-H
Motor Type:Brushless DC motor
Max flow rate:4.5L/min
Max pressure:130Kpa, Max vacuum: 65Kpa
Voltage:6V/12V /24V
Ideal Life Time:10000 Hours
Working Mode:Continuous or Interrupt
Diaphragm Vaccum Pump TM30B offer multiple component configurations allowing them to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliabler, highly efficient.
Features:
1.Highest Performance/Size Ratio
2.Performs Quieter
3.Lasts Reliably Longer, 10000h lifetime
4.Uncontaminated flow
5.Little vibration
6.High level of gas tightness
7.Optimal solution for your application
Wetted material options:
1.Optional membrane materials: – – – –
EPDM for normal air – – – –
PTFE for corrosive air,like acid, alkali air, ozone etc.
2.Optional valve materials:
EPDM for normal air – – – –
FPM for corrosive air, like acid, alkali, ozone,etc. –
Application:
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas:
Industrial pressure and vacuum applications
Portable Analytical Instruments
Medical Equipment
Air Quality Sampling Monitors
Respiration Monitors
Gas or Odor Leak Detectors
http://www.topsflo.com/mini-diaphragm-pump/tm30b-h.html
توضیحات:
Fluid
air, for gas
Operation
with brushless DC motor
Priming
self-priming
Technology
diaphragm
Mobility
stationary
Domain
for medical applications
Material
PTFE
Voltage
24 V, 12 V, 6 V
Other characteristics
suction
Flow
4.5 l/min(1.18877 us gal/min)
Pressure
130,000 Pa(18.855 psi)
Input diameter
2.8 mm, 4.9 mm(0.11 in, 0.193 in)
Output diameter
2.8 mm, 4.9 mm(0.11 in, 0.193 in)
Length
65 mm(3 in)
Width
54 mm(2.13 in)
Height
75 mm(2.95 in)
Weight
350 kg(771.62 lb)
