نام محصول:
پمپ هوا
نام انگلیسی:

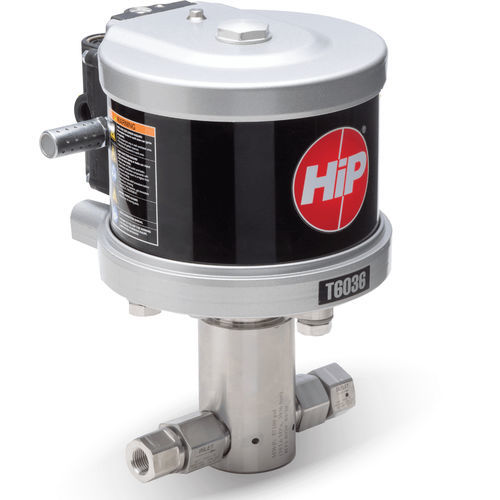

Air pump T6000 series
برند:
HIP
مشخصات:
High Pressure Equipment’s new T-Series pneumatically operated liquid pumps have been engineered to provide an extremely safe, reliable and durable hydraulic power source for applications up to 68,000 psi (4,688 bar). Combining HiP’s high pressure expertise with Graco’s extensive pump engineering background, T-Series pumps address many of the shortcomings commonly found in today’s air-driven liquid pumps. Premium T-Series pumps are built to run at their maximum rated pressure and feature a robust motor and seal design that delivers a long service life. In addition, these pumps do not require a lubricated air source and incorporate several features to facilitate easy installation and service.
HiP T-Series pumps achieve a “bubble tight” pressure stall that can be used for high pressure applications such as bolt tensioning, pressure testing, power pressing, jacking, lifting, hydraulic power units, proof testing components, valve actuation and many more.
T6000 SERIES PUMPS
Features
6 inch air cylinder
Available in 9 different pump ratios
2.5 inch pump stroke
Maximum operating pressure of 58,000 psi (4000 bar)
Maximum flow rate of 177 in3/min (2.9 lpm) at 80 CPM
Inlet air pressure 15 psi to 100 psi (1 to 7 bar)
Four different plunger seal materials
*80 CPM recommended for optimal pump seal life
توضیحات:
Fluid
air
Operation
air-driven
Technology
plunger
Mobility
stationary
Domain
industrial
Applications
lifting
Protection level
robust
Other characteristics
lubricated, seal
