نام محصول:
پمپ هوا
نام انگلیسی:

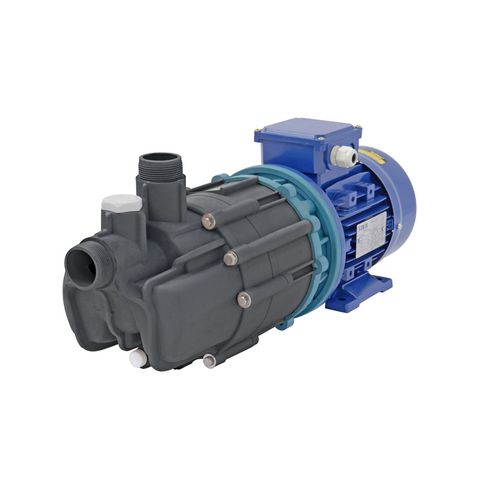

Air pump RHINO (TMA G2)
برند:
Argal Pumps
مشخصات:
1 | Stopping phase
A small quantity of liquid is trapped into the pump to enable the next starting
2 | Priming Phase
the impeller gives an accurate circulation of air + liquid mix moving air from the suction pipe to the discharge side in the atmosphere.
3 | Pumping phase
After the air is removed from the suction side, the tube is flooded by the liquid, and the pumping phase can start.
Applications
RHINO self-priming pumps are ideal for negative suction lift operations from a basement tank to a truck or surface tank, for unloading and transferring waste collection wells, and for other processes using heavy liquids like:
Chemical industry
Power plants
Pulp and paper

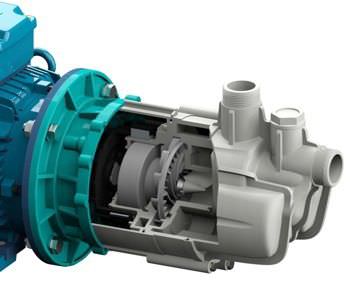

Magnetic-driven technology
Unique ARGAL solution: impeller allowing to prime both high-density and high-vapor-pressure liquids
Start-up with empty pipes
Very fast priming time
Extended lift capacity (up to -6m)
Highly corrosive-resistant materials: PP and E-TFE
Upon request: ATEX Zone 2 (II 3G Ex h IIB T4 Gb X)
3 motor executions available according to the liquid specific gravity: “N” standard – 1,1 ; “P” powered – 1,35 ; “S” superpowered – 1,8
توضیحات:
Fluid
for chemicals, air
Operation
magnetic-drive
Priming
self-priming
Technology
centrifugal
Mobility
stationary
Domain
industrial, chemical
Applications
discharge, circulation, unloading
Material
PP, thermoplastic
Protection level
chemical-resistant, explosion-proof, explosion-proof, ATEX
Other characteristics
suction, standard, small, close-coupled, radial, corrosion-proof
Flow
Max.: 20 m³/h(706.29333 ft³/h)Min.: 0 m³/h(0 ft³/h)
Pressure
8 bar(116.03 psi)
Head
Max.: 25 m(82’00” )Min.: 0 m(0’00” )
Power
Max.: 2.5 kW(3.4 hp)Min.: 1.3 kW(1.77 hp)
