نام محصول:
پمپ هوا
نام انگلیسی:
Air pump VACUUM-MEKO series
برند:
ABN Apparatebau Nittenau GmbH
مشخصات:

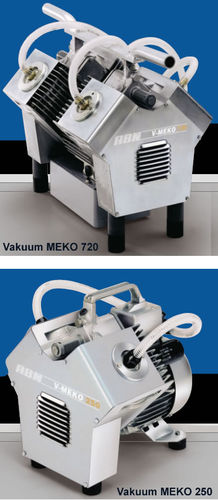

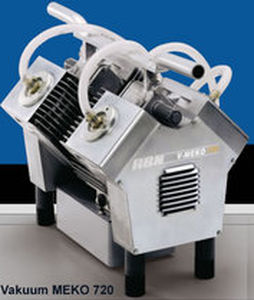

VACUUM-MEKOs are diaphragm vacuum pumps with numerous advantages and high flexibility of use. Thanks to the diaphragm technology, VACUUM MEKOs work without oil and are particularly clean and economical. These portable machines are compact and maintenance-free. Their ruggedness and long life are proverbial – typical of the top quality associated with ABN. And the maturity and reliability of their design make them predestined for installation in closed vacuum systems.
Standard features of VACUUM MEKOs:
Vacuum units based on diaphragm technology,
3-phase AC motor (400 V 3~50Hz) or AC motor (230 V 1~50 Hz), on/off switch, output sound-damper, R1/2″ A connection thread, overcurrent circuit-breaker, ready for operation with 3-m cable and plug.
Many benefits – one machine:
Vacuum MEKOs for use in measuring systems and laboratory equipment
Vacuum MEKOs for use in measuring systems and laboratory equipment
Oil-free, hence no oil changes, no disposal of old oil and no compulsory inspections in connection with oil change intervals
Compact and mobile, which in practice makes it easier and more convenient to transport the units and simpler to install them in machines and plants
Powerful, with a vacuum of up to 90 torr and a suction capacity of 520 l/min
Rugged, reliable and operationally safe, no rubbing parts, minimum wear
Long life, very little maintenance
Suitable for continuous duty – 100% OLF* – and service-proven in non-stop operation
Special models for the food industry, water treatment or laboratory use
توضیحات:
Fluid
air
Operation
with electric motor
Priming
vacuum-assisted priming
Technology
diaphragm
Domain
industrial, for the food industry, laboratory
Applications
mobile
Other characteristics
compact, suction, portable, oil-free, rugged
Flow
Max.: 1,440 l/min(380.40776 us gal/min)Min.: 500 l/min(132.08603 us gal/min)
Pressure
120 bar, 133.3 bar(1.74 psi, 1,933.353 psi)
Power
1.1 kW, 2.2 kW(1.5 hp, 2.99 hp)
