نام محصول:
پمپ همراه نزدیک
نام انگلیسی:

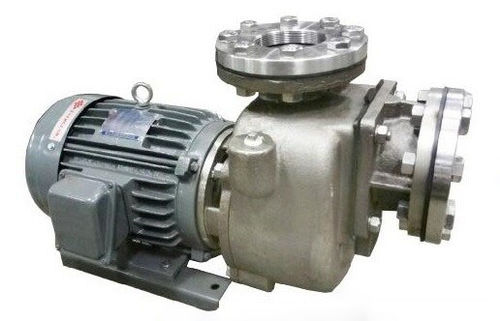

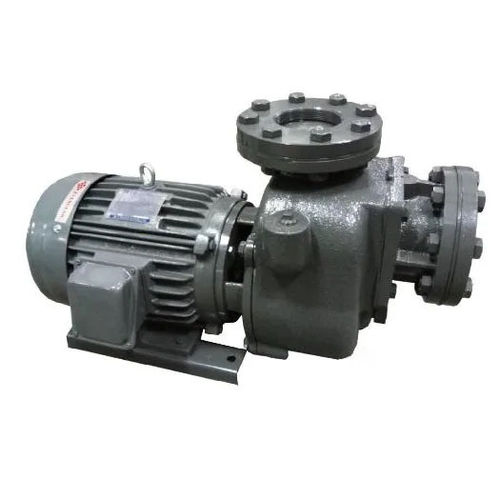

Close-coupled pump CP
برند:
Enfound enterprise co.,ltd
مشخصات:
1. The motor and pump are coaxial conjoined for eliminating fluctuations. 2. Durable mechanical seal prevents from leakage and keeps long life. 3. Compact & robust structure for saving space and for easy installation. 4. Special volute design for low noise operation and great performance
Applications:
1. Heating and cooling water circulation.
2. Broad range of industrial applications.
3. Open loop and close loop water circuit systems.
4. Water supply and pressure boosting systems.
5. Process water for paper mill, brewery, refinery.
6. Boiler feed, washing and cleaning system.
7. Water supply and disposal for households.
8. Water circulation for cooling tower, air-condition facilities.
9. Water supply or circulation for swimming pools
System Operating Conditions:
1.Ambient temperature:0~+50 degree C.
2.Liquid temperature: Standard Type: +2~+60 degree C Hot water Type: Max.100 degree C ( Required to replace for Viton mechanical seal)
3.Working Pressure: Max. 10Kg/cm²
4. Normal water or other clean non-corrosive liquids without abrasives.
Specifications:
Output:0.5~150HP (0.37~110KW)*60HZ 0.5~20HP (0.37~15KW)*50HZ
Motor Spec.: IP54~IP55 / InsulationE,B,F SFF:1.0~1.15 1Phase 110V/220V/240V (0.5HP~2HP) 3Phase 220V/380V/415V/440V/660V
Frequency: 50Hz,60Hz Pole: 2P ; 4P Single-phase with motor overload protector(0.5HP~2HP) IEC Standard, Enclosed Fan Cooled motor. Max. Head: 80M Max. Capacity: 960 M³/HR (16000LPM) Suction Lift: Max. 4M
توضیحات:
Fluid
water
Operation
with electric motor
Priming
self-priming
Technology
centrifugal
Mobility
stationary
Domain
industrial, refinery
Applications
process, cooling, circulation, cleaning, feed, washing, cooling tower, boiler
Fluid specification
for corrosive fluids
Voltage
380 V, 220 V, 240 V, 110 V
Protection level
robust, IP55, IP54
Other characteristics
compact, with mechanical seals, close-coupled, heating
Flow
Max.: 960 m³/h(33,902.08005 ft³/h)Min.: 0 m³/h(0 ft³/h)
Pressure
9.8 bar(142.137 psi)
Head
Max.: 80 m(262’05” )Min.: 0 m(0’00” )
Power
Max.: 150 ch(150 hp)Min.: 0.5 ch(0.5 hp)
Fluid temperature
Max.: 100 °C(212 °F)Min.: 2 °C(35.6 °F)
