نام محصول:
پمپ نمونه گیری

نام انگلیسی:

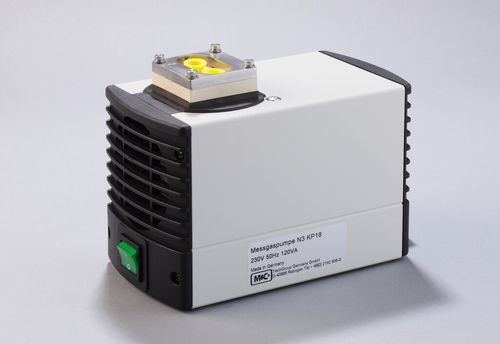

Sampling pump N3 KP18

برند:
M&C TechGroup Germany GmbH

مشخصات:
Diaphragm pump with housing
Capacity at atmospheric pressure: max. 3 Nl/min
Max. operating pressure range: 0.25 to 1.95 bar abs.
Compact design
Corrosion-resistant
100 % lubricant-free
High level of gas tightness
Power: 230 V
Material of sample-contacting parts: PVDF, PTFE, FKM

With enclosure, material: PVDF, FPM, different flow capacities, power: 115 V/60 Hz or 230 V/50 Hz

The compact diaphragm pumps type N3/5/9 are suitable for sampling air, gases and vapours in a temperature range between + 5 °C and + 40 °C. The construction and the pump capacity are adapted to the requirements of analytical technology.

Diaphragm pump type N3KP18 with housing, flow rate: 3 Nl/min, connections: G 1/8″ f, material: PVDF, Viton®, power: 230 V/50 Hz

توضیحات:
Fluid
for gas

Operation
electric

Technology
diaphragm

Mobility
stationary

Domain
industrial

Applications
sampling

Material
PTFE

Voltage
230 V, 115 V

Other characteristics
compact, analytical

Pressure
Min.: 0.25 bar(3.626 psi)Max.: 2.5 bar(36.259 psi)

Fluid temperature
Min.: 5 °C(41 °F)Max.: 180 °C(356 °F)
