نام محصول:
پمپ مینیاتوری
نام انگلیسی:

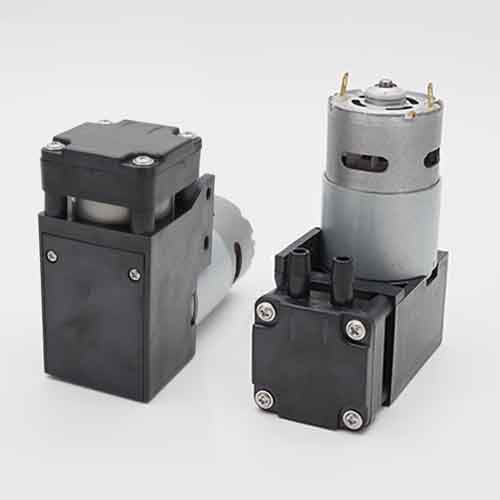

Miniature pump BD-07A/BD-07V
برند:
Shenzhen Boden Technology Development Co., Ltd
مشخصات:
Customization is our standard practice: all our pumps can be modified to meet your specific requirements. And within a few days. Customized range of air pumps:
Features
• Efficient and durable design
• Smallest size and lightest weight
• Oil-free and non-contaminating media
• Maintenance free and easy to install
• Excellent air tightness
• Long life, continuous operation
• Low noise and low vibration
Applications
• Vacuum Packaging Machine
• Vacuum Juice Extractor
• Liposuction Slimming Machine
• Tire pump
• Portable Electric Sprayer
• Oxygen Concentrator
توضیحات:
Fluid
air, for gas
Operation
with DC motor
Priming
normal priming
Technology
piston
Mobility
stationary, mobile
Domain
industrial, for laboratories, for machine tools, for medical applications
Applications
for transfer, high-pressure, circulation, booster, suction
Material
EPDM
Voltage
24 V, 12 V
Protection level
maintenance-free, standard, corrosion-resistant
Other characteristics
miniature, suction, high-performance, OEM, low-noise, high-flow, portable, oil-free, low-vibration, custom, low-power
Flow
Max.: 40 l/min(10.56688 us gal/min)Min.: 15 l/min(3.96258 us gal/min)
Pressure
Max.: 6.5 bar(94.275 psi)Min.: 4.5 bar(65.267 psi)
Power
Max.: 48 W(0.07 hp)Min.: 24 W(0.03 hp)
Fluid temperature
Max.: 40 °C(104 °F)Min.: 0 °C(32 °F)
Input diameter
4.5 mm(0.177 in)
Output diameter
8.3 mm(0.327 in)
Length
108 mm(4 in)
Width
43 mm(1.69 in)
Height
87 mm(3.43 in)
Weight
580 g(20.46 oz)
