نام محصول:
پمپ میعانات
نام انگلیسی:

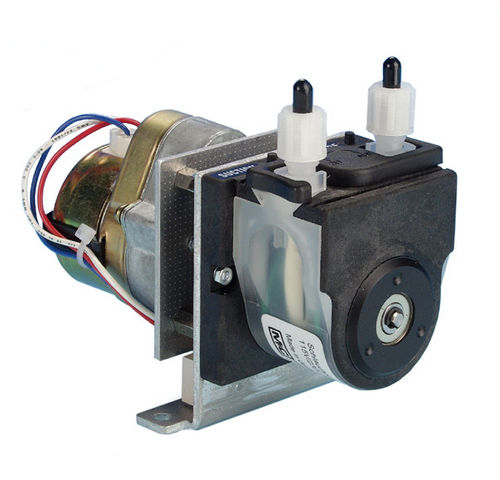

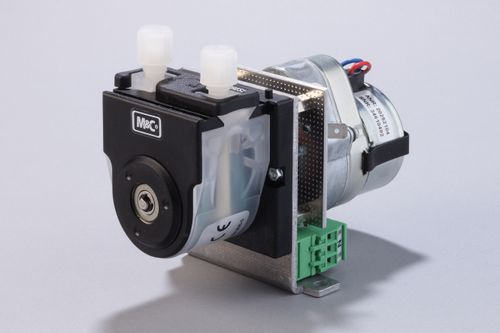

Condensate pump SR25.3-W
برند:
M&C TechGroup Germany GmbH
مشخصات:
– Peristaltic pump for wall or front-panel mounting
– Reliable condensate removal
– Self-priming: pump creates a suction force to draw liquid upwards
– With return stop
– Rotational speed: 1 rpm
– Material of sample-contacting parts: Novoprene (Masterflex®/Chemsure® optional), PVDF
The peristaltic pump SR25.2 has been specially developed for the condensate removal in analytical applications. It ensures a continuous condensate discharge in gas coolers, condensate collecting vessels, etc. A synchronous motor and the gearing unit with return stop prevent the condensate from flowing back. The capacity of 0.3 l/h guarantees a safe condensate removal, e.g. when cooling 850 l/h sample gas with an inlet dew point of +70 °C.
Peristaltic pump type SR25.3.W for wall or surface mounting, rotational speed: 1 rpm, capacity: 12 ml/h liquid, pressure range: 200 mbar to 2.2 bar abs., material: Novoprene, PVDF, PVDF hose connection: DN 4/6, power: 115/230 V 50/60 Hz with terminal clamp
توضیحات:
Fluid
condensate, for gas
Operation
electric
Priming
self-priming
Technology
peristaltic
Mobility
stationary
Domain
industrial
Applications
cooling, collecting
Material
PVDF
Voltage
230 V, 115 V
Other characteristics
suction, analytical, wall-mount
Flow
0.00012 l/h(0.00003 us gal/h)
Pressure
Max.: 2,200 mbar(31.908 psi)Min.: 200 mbar(2.901 psi)
Fluid temperature
Max.: 60 °C(140 °F)Min.: 0 °C(32 °F)
