نام محصول:
پمپ میعانات
نام انگلیسی:

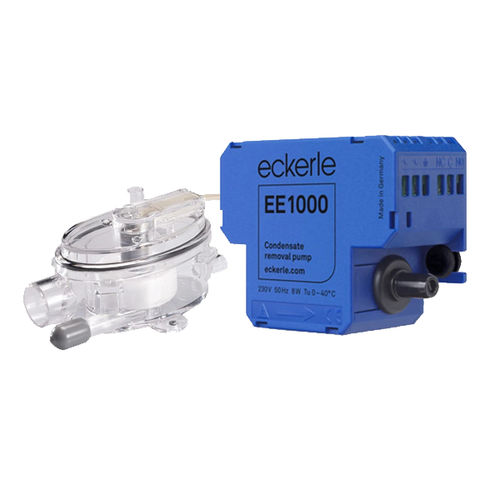

Condensate pump EE1000
برند:
Eckerle Technologies GmbH
مشخصات:
Item number: 9006301015
Application
The EE1000 with three-stage float control has been developed especially for mini-split units, wall-mounted equipment and thin ceiling-mounted units. The pump operates electromagnetically and is very quiet, with good delivery performance against pressure. It is suitable for small air conditioning units.
Description
The EE1000 comprises a pump and a float module. The three-stage float switch controls the pump. If the maximum permissible level of condensate is exceeded, the float triggers an alarm. The float module is connected directly to the outflow pipe of the condensate vessel or to the end of the outflow line. The supplied package includes the pump, float switch, the vibration dampers and fastening materials.
Technical data
Drive – Swiss drive inside
For air conditioning units up to (kW) – 10
Pump module (L x W x H in mm) – 77 × 37,5 × 62
Electrical data – 230 V, 50/60 Hz, 8 W
Power consumption in Standby mode (W) – Operation 8, Standby 1
Float module (L x W x H in mm) – 82 × 39 × 39
Max. delivery volume (l/h) – 10
Max. head height (m) – 1,5
Alarm circuit – max. 230 V, 8 A (ohmic load) NO/NC normally open/normally closed
Special feature – Impervious to blockage or contamination due to unique valve design and large piston bore
Switching points (mm) – Alarm: max. 23 Start: 20 ±1 Stop: 15 ±1
توضیحات:
Fluid
condensate, air
Operation
electric
Technology
centrifugal
Domain
industrial
Applications
for control
Other characteristics
three-stage, line, small, wall-mounted
Flow
10 l/h(2.64172 us gal/h)
Head
10 m(32’09” )
Power
10 kW(13.6 hp)
