نام محصول:
پمپ مایع چسبناک
نام انگلیسی:

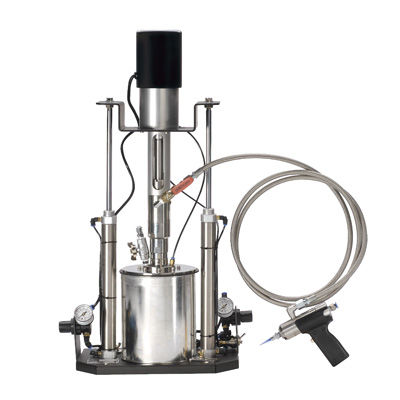

Viscous fluid pump DA35 series
برند:
Fisnar Inc.
مشخصات:
The DA35 extrudes medium to high viscosity materials under pressure directly from a pre-filled can. This system is suitable for automatic and semiautomatic controlled dispensing applications, which require a constant supply of air-free material.
The extruder pump body is fitted with a follower plate that seals and follows the material as the level drops to wipe the sides of the can clean, limiting waste. Supplied as standard with a NBR wiper seal fitted. Hose, valve, handle, and FKM wiper seal sold separately.
FEATURES
• Prevents air bubbles and material voids
• Air ram assist to help drive material
• Simple load mechanism provides easy cleaning
• Easy hook up for automatic systems
• Low noise electric extruder model
• Integrated low level alarm and warning light
SPECIFICATIONS
• Height Adjustment : 550 mm min – 720 mm max (21.65” min – 28.35” max)
• Power Input for Sensing : 110 – 220 VAC, 50 – 60 Hz
• Air Input Pressure : 30 – 100 psi
• Fluid Viscosity Range : 30,000 – 300,000 cps
• Ratio : 8.5
• Volume/Stroke : 5 cc
• Max Pump Speed : 60rpm
• Air Inlet/Fluid Outlet Size : 1/4” NPT (f)
• Wetted Parts : PTFE, Viton®, and PEEK seals
توضیحات:
Operation
electric
Priming
priming-assisted
Technology
piston
Mobility
mobile
Domain
industrial
Applications
distribution, adjustment
Material
PTFE
Fluid specification
for viscous fluids
Voltage
220 V, 110 V
Other characteristics
standard, automatic, seal, integrated
Pressure
Min.: 30 psiMax.: 100 psi
Length
215 mm(8 in)
Height
440 mm(17.32 in)
Weight
12.73 kg(28.06 lb)
