نام محصول:
پمپ لوب دوار
نام انگلیسی:
Rotary lobe pump TR series
برند:
Wenzhou BOAO Mechanical Manufacturing Co.,Ltd.
مشخصات:

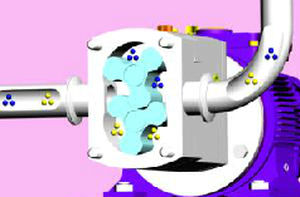

The TR Lobe pumps basically consist of two lobe rotors which rotate synchronously inside a casing without touching each other.The two rotors divide the rotor chamber into to several smaller rooms and move in order as: a→b→c→d. At position a, only room Ⅰif filled with medium; at position b, some medium is closed in room B; at position C, some medium is also closed in room A, and at position d, room A and B are connected with room Ⅱ; here the medium is delivered to the outlet. With this circulation, the medium (material) is delivered through the pump continuously.
Universal cam and rotor transfer pump is suitable to tenderly transfer high-viscosity matters or the matters containing particles. It is suitable for hygienic and aseptic place .Tenderly handing matters, slow rotational speed(200~600rpm),adjustable transportation speed, especially suitable for the mediums that are easy to foaming or may be damaged during high-speed transportation .It is also used as a metering pump. It is suitable for on-the-top CIP cleaning and steam sterilization. Hygienic handling conforms to GMP standard.
2.Working principle:
Application
Medicines: Pill siziness , syrup , medicine thick fluid , milk shape liquid , proteide
Cosmetics: dyes, alcohol ,essential oil .
Beverages: alcohol, spirit , beer, wort ,ferment powder , fruit juice, beverages with particles
Other: sweet industry , baking industry and chemical industry etc.
توضیحات:
Fluid
paint, alcohol, beverage, for dairy products, for cream, beer, for juice, whey, oil
Operation
with electric motor
Priming
self-priming
Technology
rotary lobe
Mobility
stationary
Domain
for the chemical industry, for the food and beverage industry, for hygienic applications, for medical applications, for the cosmetics industry
Applications
transfer, handling, metering
Material
stainless steel
Fluid specification
for high-viscosity fluids
Protection level
explosion-proof
Other characteristics
high-speed, with seal
Flow
Max.: 48,000 m³/h(1,695,104.00263 ft³/h)Min.: 330 m³/h(11,653.84002 ft³/h)
Power
Max.: 15 kW(20.39 hp)Min.: 0.37 kW(0.5 hp)
Fluid temperature
Max.: 150 °C(302 °F)Min.: -20 °C(-4 °F)
