نام محصول:
پمپ فاضلاب
نام انگلیسی:

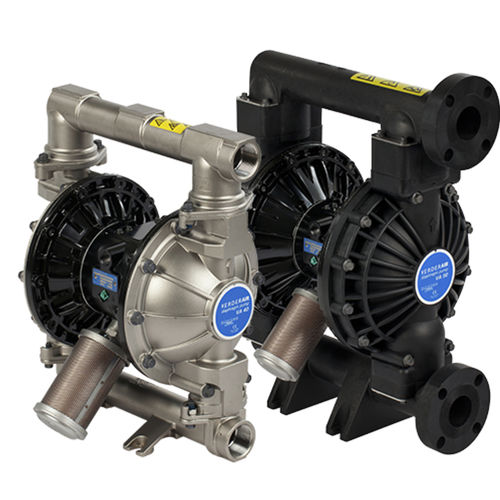

Wastewater pump Verderair VA series
برند:
Verder Liquids
مشخصات:
The VA industrial range really does set the benchmark for air diaphragm pumps. The range features fast-acting air valve technology – eliminating wasted air and using all of the air for moving the fluid. The efficient use of air reduces the total amount of air consumption for a given quantity of fluid – reducing the energy cost. Available in metallic and non-metallic construction with many different wet-side materials, the VA range is compatible with chemically-aggressive and abrasive media. The range features bolted chambers for safe operation, rugged mountings to limit vibration.
توضیحات:
Fluid
for wastewater, paint, for solvents, oil
Operation
air-driven
Technology
double-diaphragm
Domain
industrial
Material
aluminum, PVDF, stainless steel, metal, cast iron, polypropylene
Fluid specification
for abrasive fluids, for aggressive media
Protection level
ATEX
Other characteristics
rugged, non-metal
Flow
Max.: 1,200 l/min(317.00646 us gal/min)Min.: 19 l/min(5.01927 us gal/min)
Pressure
7 bar, 8.4 bar, 8.6 bar(101.526 psi, 121.832 psi, 124.732 psi)
Head
2.4 m, 2.5 m, 3.7 m, 4.5 m, 4.9 m(7’10” , 8’02” , 12’01” , 14’09” , 16’00” )
