نام محصول:
پمپ فاضلاب

نام انگلیسی:

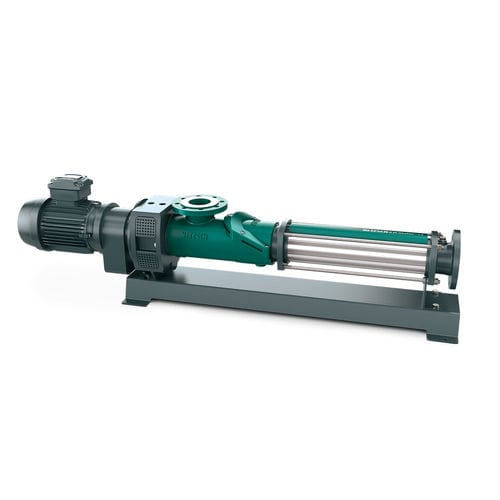

Wastewater pump NEMO® in FSIP® Design

برند:
NETZSCH Pumps & Systems

مشخصات:
NEMO® progressing cavity pumps in the FSIP® (Full Service in Place) design allow you to save up to 66 percent on servicing time. Available in three variants, these pumps are versatile and can be utilized across all industrial sectors where a variety of media need to be conveyed with low pulsation, unaffected by pressure and viscosity fluctuations, or require precise dosing. The FSIP® concept is particularly advantageous for applications where pumps are subjected to high wear and require frequent maintenance and servicing. By reducing the installer’s workload, eliminating unnecessary steps, and shortening maintenance time, significant savings in capacity and costs can be achieved. For example, up to 66 percent of working time can be saved when changing the stator. The FSIP® pump is designed so that the housing itself serves as support and orientation during assembly. This special design ensures that each component automatically fits into its designated place without the need for further adjustments. As a result, changing all wear parts takes less than half the time previously required.

توضیحات:
Fluid
for wastewater, for chemicals, slurry, for food products, for lubricants, fuel

Operation
with electric motor

Priming
self-priming

Technology
progressive cavity

Mobility
stationary

Domain
for the mining industry, industrial, for the chemical industry, for wastewater treatment, for the pharmaceutical industry, for the food industry, for the petrochemical industry, agriculture, for maritime applications, for the paper industry, for the cosmetics industry, for methanizers, for hygienic applications

Applications
transfer, discharge, process, high-pressure, dosing, drain, chemical process, suction, for industrial applications, conveying, for harsh environments, high-temperature

Fluid specification
for low-viscosity fluids, for abrasive fluids, for solids-laden fluids, for viscous fluids, for high-viscosity fluids

Other characteristics
compact, heavy-duty

Flow
Max.: 150 m³/h(5,297.20001 ft³/h)Min.: 4 m³/h(141.25867 ft³/h)

Pressure
18 bar, 24 bar(261.068 psi, 348.091 psi)
