نام محصول:
پمپ فاضلاب
نام انگلیسی:
Wastewater pump
برند:
Hunan Along New Energy Technologies Co., Ltd.
مشخصات:
Maximum flow could reach 300 m³/hr
Maximum Total Solid content allowed could reach 10%

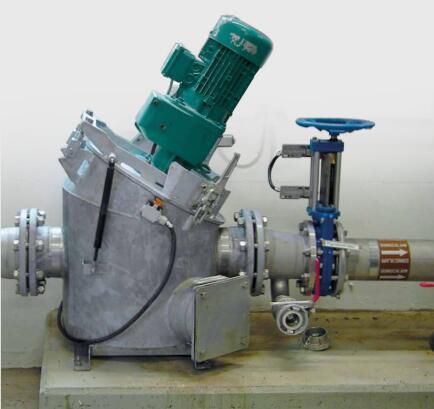

Structural design for M-Ovas® series Grinding Pump:
1,Cavity
The housing is equipped with a sandstone settling chamber in accordance with the principles of hydrodynamics,with a upper-positioned hole for cleaning. Open the cover of hole,the sedimentation can be easily removed. The housing is galvanized or made of stainless steel to prevent corrosion.
2,Cover
The chopper is integrated on the cover. There is a cylinder on the cover used for assisting in opening the cover. In this way, it is more convenient to clean up the solid material in the settling chamber.
3,Chopper
The cutter blade is made of wear-resistant hardened steel. The chopping performance is optimized by the cutterhead with the automatic adjustment of the blade mechanism. The blade is made of wear-resistant hardened steel. The flywheel supports the chopping operation and reduces the power consumption of driving. Cutters and blades can be replaced easily and no need of disassembly of pipe fittings.
4,Axis Sealing
Mechanical sealing of Lubrication quenched hardened alloyed steel end to prevent material leakage.
توضیحات:
Fluid
for wastewater
Operation
electric
Technology
centrifugal
Domain
industrial
Material
stainless steel
Protection level
abrasion-resistant
