نام محصول:
پمپ فاضلاب
نام انگلیسی:

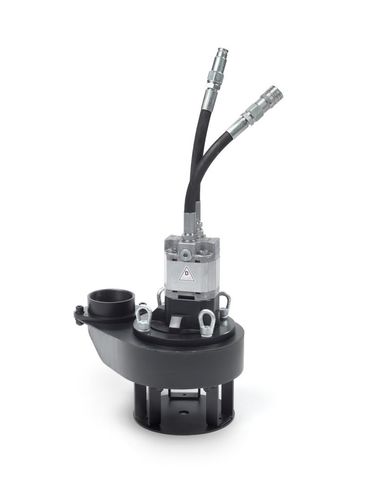

Wastewater pump SP 35
برند:
DOA Hydraulic Tools Srl
مشخصات:
• Extremely robust and reliable, minimum maintenance required, can run dry without damage indefinitely
• The pump housing can be open in few minutes without tools, for inspection of the impeller and the pumping chamber 38 L/min @ 140 Bar 30 L/min @ 140 Bar 20 L/min @ 140 Bar
• Can be operated by small power packs or by the hydraulic circuit of mini excavators, vans, tractors, work vehicles etc.
• Hydraulic motor equipped with a one-way valve that prevents accidental oil leaks if connected in the wrong hydraulic port
• Available with “Viton” hydraulic motor seals for pumping high-temperature fluids
• The single-channel impeller (without vanes) has a minimal mechanical effect on the fluid this limits the formation of emulsions and foams
• Important feature in pumping spills of oils and oil products from “skimmers” into the sea and lakes
SP35 is a 3 hydraulic waste pump for clear and heavily loaded liquids, impeller and shell are made in stainless steel. The pump produce high performance thanks to hydraulic power and the exclusive closed single channel impeller which allows very high efficiency with flow rates up to 1600 L / min, head up to 50 meters and the possibility of pumping dense or very muddy water with suspended solid bodies up to 50 mm in diameter. SP35 is ideal for maintenance work urban networks, which pump very dense liquids, against floods in civil protection services and road works in general.
توضیحات:
Fluid
for wastewater, oil
Operation
hydraulic motor
Priming
submersible
Technology
impeller
Mobility
stationary
Domain
industrial
Applications
work, high-temperature
Material
stainless steel
Protection level
robust
Other characteristics
mechanical, open, dry
Flow
Max.: 1,600 l/min(422.67528 us gal/min)Min.: 10 l/min(2.64172 us gal/min)
Pressure
Max.: 210 bar(3,045.792 psi)Min.: 17 bar(246.564 psi)
Head
40 m(131’02” )
Length
350 mm(14 in)
Height
370 mm(14.57 in)
Weight
17 kg(37.48 lb)
