نام محصول:
پمپ فاضلاب
نام انگلیسی:

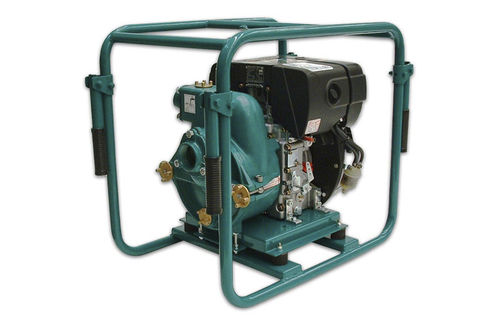

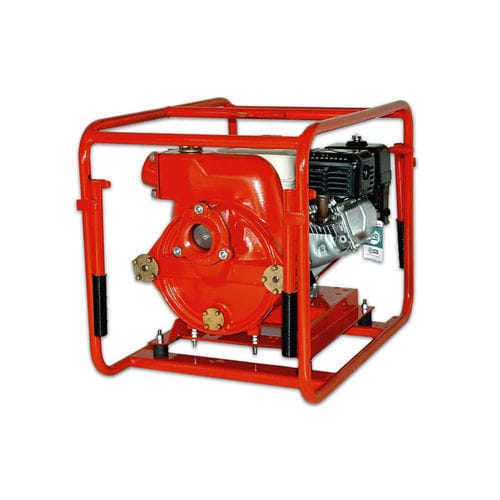

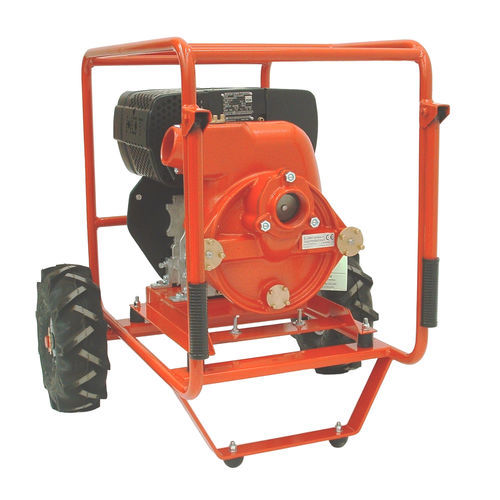

Wastewater pump TRASHLIB – 2″
برند:
Caffini Cipriano s.r.l.
مشخصات:
Pump body: made of top quality aluminium UNI 3600, GALSI 5.
Volute and impeller made of abrasion resistant G25 cast iron.
Easy-to-replace cast iron wear plate with rubberized coating that is anti-abrasive and oil-resistant.
Balanced impeller.
Easy-to-replace flanged aluminium suction inlet and delivery outlet with BSP or NTP female thread.
Lubricated mechanical seal made of silicon carbide.
The cover fixing handles and the water fill/drain plugs of the pump body are made of bronze.
توضیحات:
Fluid
for wastewater
Operation
gasoline engine
Priming
self-priming
Technology
turbine
Mobility
stationary, mobile
Domain
industrial, for the construction industry, for marine applications
Applications
for transfer, drain, outlet
Material
cast iron, aluminum, bronze, brass
Protection level
oil-resistant, IP55
Other characteristics
suction, mechanical, with mechanical seals, lubricated
Flow
Min.: 0 m³/h(0 ft³/h)Max.: 51 m³/h(1,801.048 ft³/h)
Head
Max.: 30 m(98’05” )
Power
5.2 ch(5.2 hp)
Input diameter
Max.: 50 mm(1.969 in)
Output diameter
Max.: 50 mm(1.969 in)
