نام محصول:
پمپ فاضلاب
نام انگلیسی:
Wastewater pump e-1510
برند:
Bell & Gossett Domestic Pump
مشخصات:

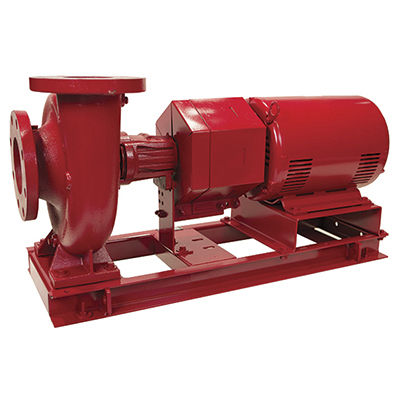

The Series e-1510 base mounted end suction pumps deliver the highest efficiencies, performance and durability. All pumps feature stainless steel impellers and an expanded efficiency island for efficient pumping across the widest range of operational conditions reducing electricity consumption and improving overall system performance.

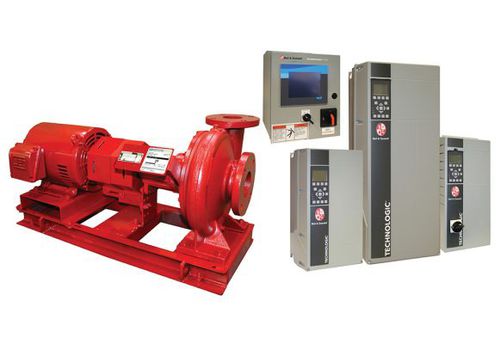

The combination of Technologic variable speed drives with the e-1510 end suction pumps creates a highly energy efficient pump and drive package. The ITSC offers a sensorless option utilizing the latest generation hardware platform with advanced pumping software and proven algorithms. The IT options provides the reliability of a wired sensor solution

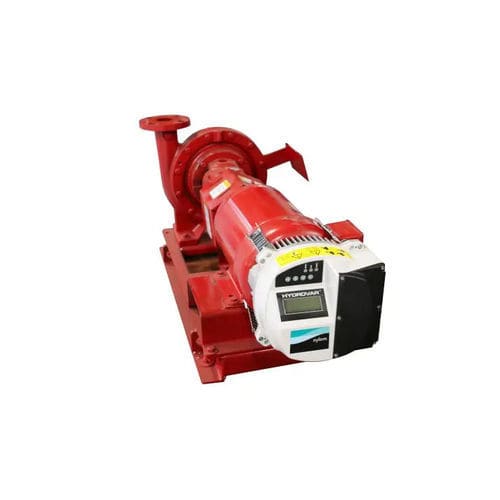

Have an existing 1510 or e-1510 pump? Add variable speed and start saving even more with the easy to install and commission Hydrovar field retrofit kit or add a Technologic Intelligent Pump Controller.
The extensive efficiency profile enables users to maintain significantly higher levels of efficiency over a much wider range of operating conditions. The Series e-1510’s dramatic improvement in efficiency is the result of cutting edge computational fluid dynamics (CFD) design technology, deep hydraulic engineering expertise, and Xylem’s comprehensive knowledge of HVAC and plumbing applications. The Bell & Gossett Series e-1510 is available in 26 sizes and a variety of configuration options that enables customization and flexibility to fit a broad range of operating conditions.
FEATURES & BENEFITS
True Back Pullout
Internally Self-Flushing Mechanical Seal
Computer Controlled Impeller Balancing
Heavy Duty, Rugged Baseplate
Solid-Foot Mounted Volute
Center Drop-Out Spacer Coupling
توضیحات:
Fluid
for wastewater, for hot water
Operation
electric
Technology
impeller
Mobility
stationary
Domain
industrial
Material
stainless steel
Other characteristics
suction, mechanical, single-stage, rugged
Flow
Max.: 4,000 us gal/min(15,141.64714 l/min)Min.: 0 us gal/min(0 l/min)
Pressure
Max.: 175 psiMin.: 0 psi
Head
Max.: 560’00” (170.69 m)Min.: 0’00” (0 m)
Fluid temperature
Max.: 250 °C(482 °F)Min.: -20 °C(-4 °F)
