نام محصول:

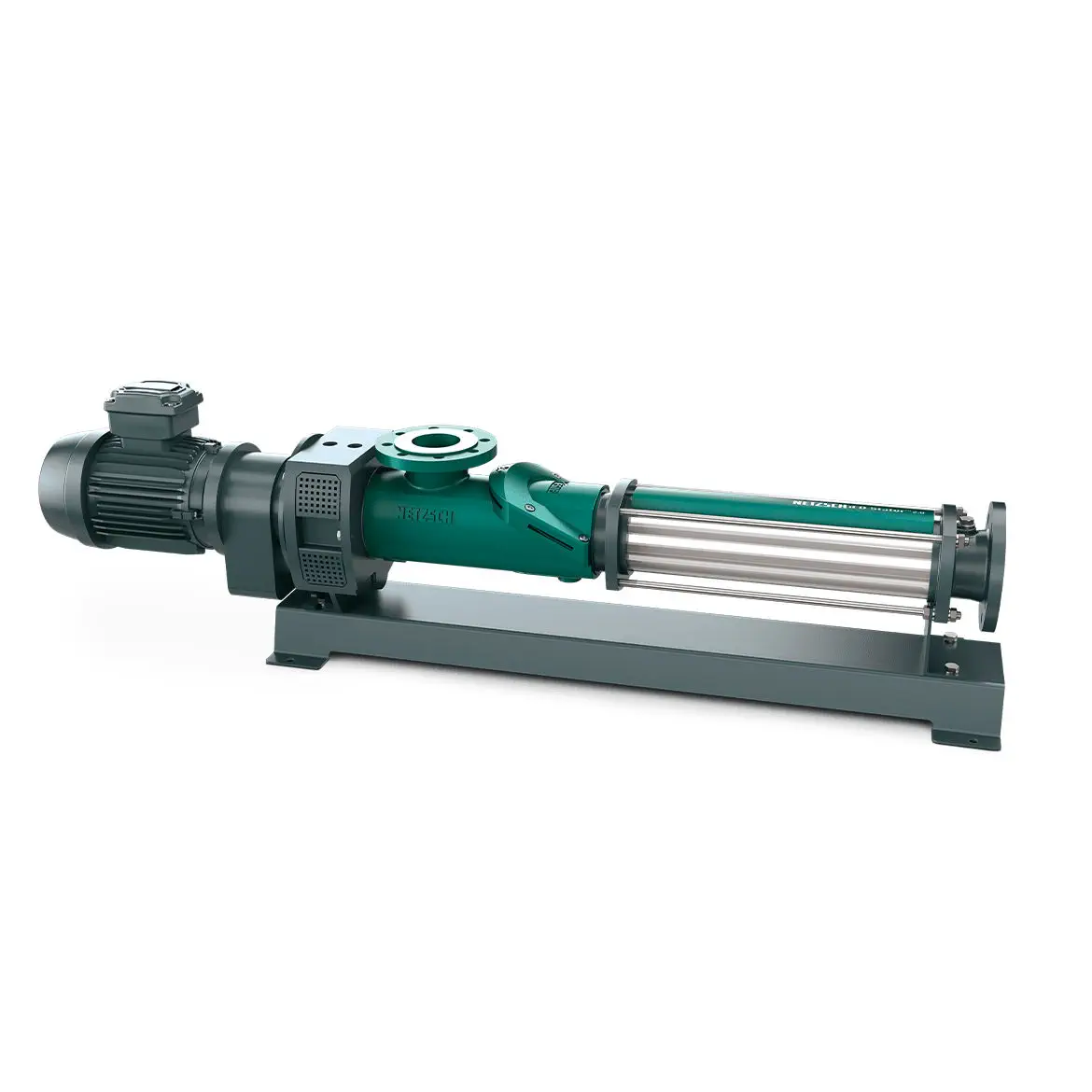

پمپ فاضلاب سری NEMO® NM
نام انگلیسی:
Wastewater pump NEMO® NM series
برند:
NETZSCH Pumps & Systems
مشخصات:
Fluid
for wastewater, for chemicals, slurry, for food products, for lubricants, fuel
Operation
with electric motor
Priming
self-priming
Technology
progressive cavity
Mobility
stationary
Domain
for the food industry, industrial, for the chemical industry, for wastewater treatment, for the pharmaceutical industry, for the petrochemical industry, for the mining industry, agriculture, for the paper industry, for maritime applications, for the cosmetics industry, for methanizers, for hygienic applications
Applications
transfer, discharge, process, high-pressure, dosing, drain, chemical process, suction, for industrial applications, conveying, for harsh environments, high-temperature
Fluid specification
for abrasive fluids, for low-viscosity fluids, for solids-laden fluids, for viscous fluids, for high-viscosity fluids
Other characteristics
compact, heavy-duty
Flow
Max.: 150 m³/h
(5,297.20001 ft³/h)
Min.: 4 m³/h
(141.25867 ft³/h)
Pressure
18 bar, 24 bar
(261.068 psi, 348.091 psi)
توضیحات:
Full service in place: Where maintenance and service friendliness matter
Save up to 66 percent of servicing time, the NEMO® progressing cavity pumps in FSIP® design make it possible. They are available in three variants and can generally be used in all industrial areas where very different media have to be conveyed with low pulsation, as well as unaffected by fluctuations in pressure and viscosity, or dosing tasks.
The FSIP® concept of the NEMO® progressing cavity pump is especially interesting where pumps are installed in wear intensive applications requiring more service and maintenance work. Every time the installer’s workload is eased, additional work steps are avoided and maintenance time is reduced, this enables savings in terms of capacities and costs. Up to 66 percent of working time can be saved when changing the stator. The FSIP® pump is designed in a way that the housing itself functions as support and orientation guideline. The special design enables that each part automatically fits into its destination. Positioning is done automatically without further adjustments. Therefore the change of all wear parts takes less than half of the time required so far.
NEMO® progressing cavity pump: Save costs due to FSIP® design
In block construction with a flanged drive, this NEMO® pump is particularly compact and economical. The pump also differentiates itself by means of low investment and operating costs. In FSIP® design the pump can help to safe even more maintenance costs and costs caused by downtimes.
