نام محصول:
پمپ عرضه دیگ بخار
نام انگلیسی:
Boiler supply pump
برند:
Three Es
مشخصات:

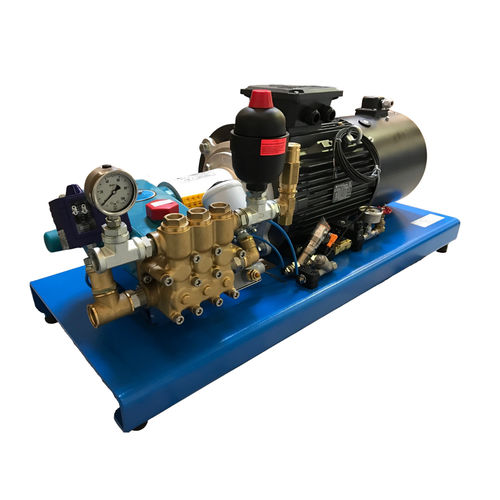

Three es pumping sets are engineered and patented to work with liquids up to 90°C in the standard version and up to 135°C with cooling.
Examples of use are:
– Instant steam boiler feed
– High temperature steam hot water injection
– Recirculation of pressurised fluids
Rely on Three es’ field-proven technology for your high pressure and temperature applications and you will have:
– COMPACT SYSTEM: To optimise space.
– PLUG & PLAY SYSTEM: Easy to install and start up.
– OPTIMIZED SYSTEM: High-level design and quality.
THREE ES is committed to designing ever more advanced pumping systems.
Our research centre is now able to offer pumping units with unique features on the market Some examples of Technological Pluses can be requested are:
HIGH TEMPERATURES
With pumps in the flushed version up to 135°C and 90°C without the need for
cooling.
CONSTRUCTIVE RELIABILITY
Product proven in over 30 years of experience in the Boiler-feed sector.
High-quality materials and accessories with an high level of resistance guarantee our products are highly efficient in all situations of use.
PREDICTIVE DIAGNOSTICS
Our pumping units can be supplied with a self-diagnosis system, which, thanks to Wi-Fi and 5G connectivity, allows you to monitor the correct
monitoring the correct operation of the pumping unit and signalling preventive maintenance, such as oil changes,
توضیحات:
Fluid
for hot water, for industrial water, condensate
Operation
with electric motor
Priming
normal priming
Technology
plunger
Mobility
stationary
Domain
industrial
Applications
circulation, high-pressure, dosing, very high-pressure, booster, feed, for industrial applications, recirculation, high-temperature, for hazardous locations, for boiler, flow control, boiler supply, for high-pressure applications, ultra high-pressure, volumetric dispensing, for high-temperature applications, injection
Material
stainless steel, PTFE, brass, ceramic, PVDF
Fluid specification
for aggressive media, for low-viscosity fluids
Voltage
380 V, 400 V
Protection level
chemical-resistant, explosion-proof, hazardous-duty, ATEX, corrosion-resistant, robust
Other characteristics
high-flow, compact, base-mounted, OEM, lubricated, adjustable, triplex, belt-drive, variable-speed, continuous-flow, direct-drive, ball bearing, for heating systems
Flow
Max.: 20,000 l/h(5,283.44105 us gal/h)Min.: 10 l/h(2.64172 us gal/h)
Pressure
Max.: 350 bar(5,076.321 psi)Min.: 10 bar(145.038 psi)
Fluid temperature
Max.: 140 °C(284 °F)Min.: 60 °C(140 °F)
