نام محصول:
پمپ طبل
نام انگلیسی:
Drum pump 2109-BSP
برند:
ITW Air Management
مشخصات:

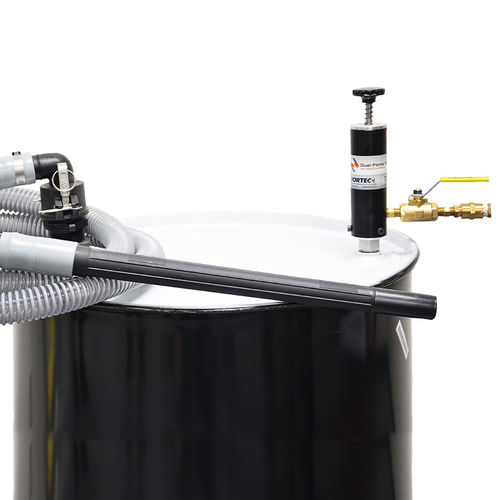

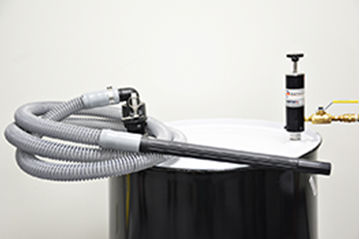

The Dual Force Vac System is a convenient and versatile solution for liquid material handling and spill clean up. Using powerful Transvector technology, the Dual Force Vac Drum Pump can either fill or discharge a 55 gallon drum in under two minutes. It switches easily — with a 1/4 turn of a knob — from fill to discharge mode. And the Dual Force Vac can handle viscous liquids and particulates. Quiet and safe, the Dual Force Vac is air-powered with no moving parts, meaning no motor burn out and no shock hazard. It quickly installs on a 55 gallon drum and comes with a 10 foot hose and nozzle.
BENEFITS
Fast pick up or discharge, fills or empties a drum in less than 2 minutes

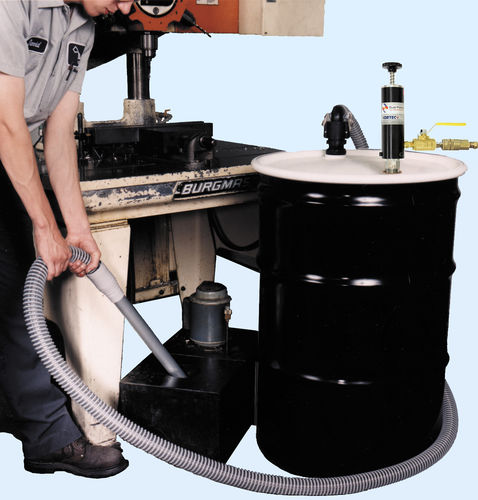

Cleans machine sumps including chips and particulates
Handles liquids up to 1500 cPs
Handles particulates and swarf with ease
Single tool switches quickly from discharge to suction
Safe, with no shock hazard
Low maintenance, with no motor or moving parts
FEATURES
Ease of use with patented design
Automatic safety shut off valve prevents overflows
Relief valve limits internal drum pressure to 8 psig (1.6 bar)
Installs on a 55 gallon (200L) drum in less than a minute: Drum spec UN/1A1/X1.8/300
Resistant to most non-volatile, non-flammable liquids
Optional wand and squeegee kit handles large floor spills
Switches from fill to discharge mode with a ¼ turn of a knob
Installed unit pivots 360 deg for easy hookup to compressed air line; facilitates caster-mounted drum portability
Included with Model 2109:

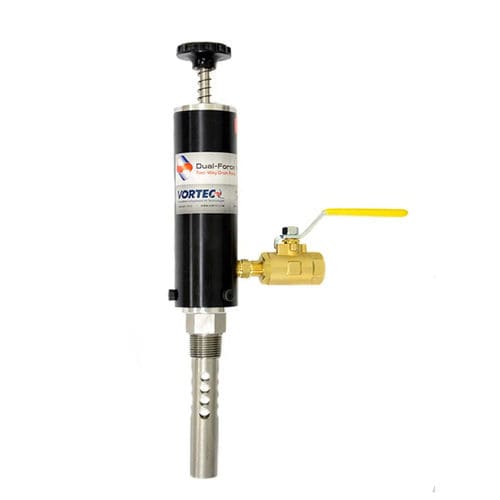

Pump assembly with integral overflow preventer and pressure relief valve

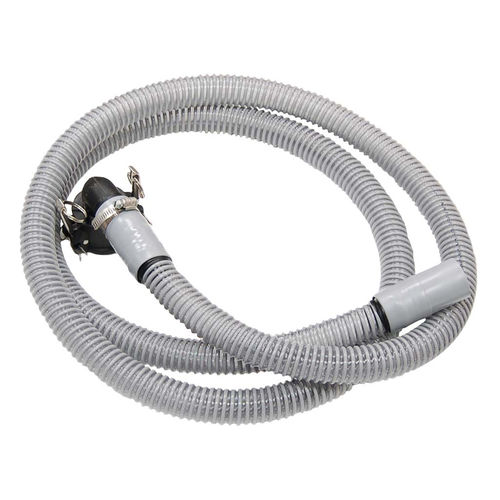

10-foot hose and nozzle
Compressed air filter
Drum evacuation tube
Extension wand
توضیحات:
Fluid
water
Operation
pneumatic
Priming
vacuum-assisted priming
Technology
impeller
Mobility
stationary
Domain
industrial
Applications
discharge, handling, drum, filling
Fluid specification
for viscous fluids
Flow
Max.: 39.5 us gal/min(149.52377 l/min)Min.: 33 us gal/min(124.91859 l/min)
Pressure
Max.: 100 psiMin.: 50 psi
Weight
10 kg(22.05 lb)
