نام محصول:
پمپ طبل
نام انگلیسی:
Drum pump 2109
برند:
ITW Air Management
مشخصات:
The Dual Force Vac System is a convenient and versatile solution for liquid material handling and spill clean up. Using powerful Transvector technology, the Dual Force Vac Drum Pump can either fill or discharge a 55 gallon drum in under two minutes. It switches easily — with a 1/4 turn of a knob — from fill to discharge mode. And the Dual Force Vac can handle viscous liquids and particulates. Quiet and safe, the Dual Force Vac is air-powered with no moving parts, meaning no motor burn out and no shock hazard. It quickly installs on a 55 gallon drum and comes with a 10 foot hose and nozzle.
Benefits
– Fast pick up or discharge, fills or empties a drum in less than 2 minutes

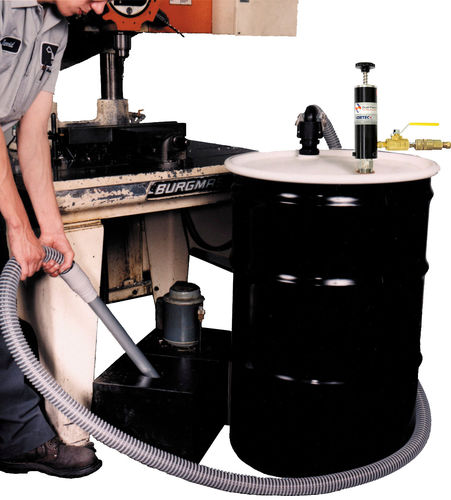

– Cleans machine sumps including chips and particulates
– Handles liquids up to 1500 cPs
– Handles particulates and swarf with ease
– Single tool switches quickly from discharge to suction
– Safe, with no shock hazard
– Low maintenance, with no motor or moving parts
Features
– Ease of use with patented design
– Automatic safety shut off valve prevents overflows
– Relief valve limits internal drum pressure to 8 psig (1.6 bar)

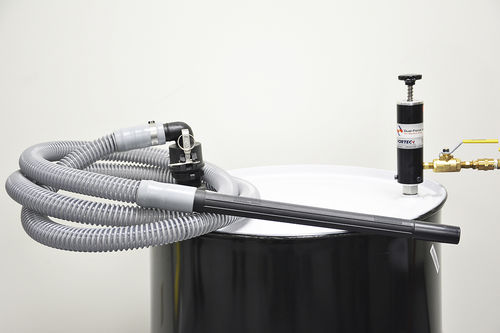

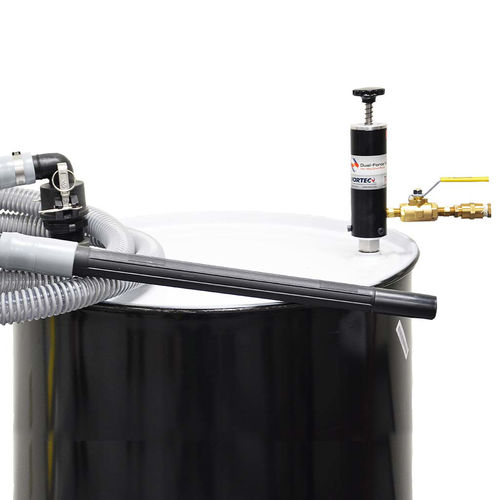

– Installs on a 55 gallon (200L) drum in less than a minute: Drum spec UN/1A1/X1.8/300
– Resistant to most non-volatile, non-flammable liquids
– Optional wand and squeegee kit handles large floor spills
– Switches from fill to discharge mode with a ¼ turn of a knob
– Installed unit pivots 360 deg for easy hookup to compressed air line; facilitates caster-mounted drum portability
– Included with Model 2109:

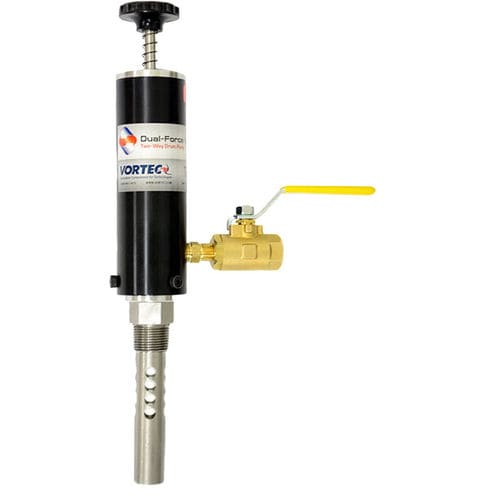

– Pump assembly with integral overflow preventer and pressure relief valve

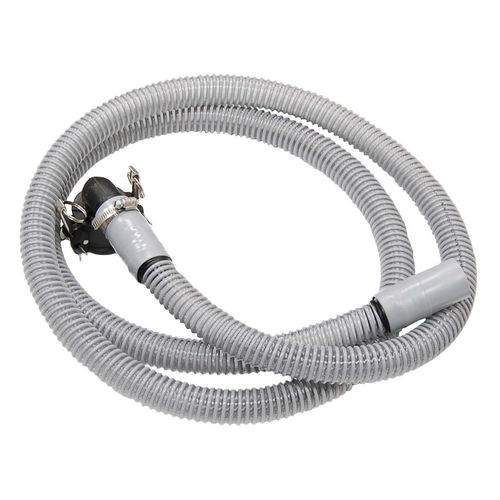

– 10-foot hose and nozzle
– Compressed air filter
توضیحات:
Fluid
for wastewater, for solvents, for coolant, slurry, lubricating oil
Operation
air-driven
Technology
impeller
Mobility
mobile
Domain
industrial
Applications
discharge, handling, drum
Fluid specification
for viscous fluids
Flow
Max.: 39.5 us gal/min(149.52377 l/min)Min.: 29.5 us gal/min(111.66965 l/min)
Pressure
Max.: 100 psiMin.: 50 psi
Output diameter
1.3 in
Weight
10 kg(22.05 lb)
