نام محصول:
پمپ طبل
نام انگلیسی:

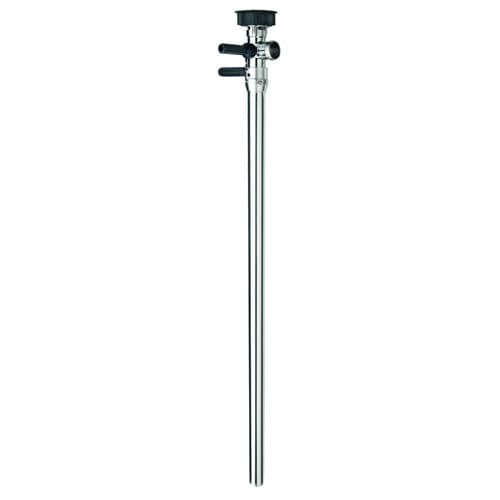

Drum pump F 425
برند:
FLUX-GERÄTE GMBH
مشخصات:
With the Drum pump F/FP 425 there is less than 0.05 l residual amount left in a 200 l drum, so maximum 0.02 %. The pump has an integrated backflow valve that is easy to close before taking the pump out of the container. Thus the backflow of the medium in the pump is prevented. This makes optimum use of especially expensive media possible and saves additional cleaning and disposal costs when handling problematic media. The pump is available in stainless steel, polypropylene and hastelloy C. In stainless steel and hastelloy C the pump F/FP 425 can also be used in hazardous areas.
Technical data:
Viscosity: min. 1 mPas – max. 1200 mPas2
Outer tube diameter: min. 41 mm3 – max. 50 mm3
Immersion length: 700, 1000, 1200
Materials outer tube: hastelloy C, Polypropylene, Stainless steel
Media / Fluids: Acids, Alkalis, Fuels, Highly flammable media, Petroleum products, Solvents
Seal: with mechanical seal
Container: 1000 l IBC, 200 l drums
Product attributes

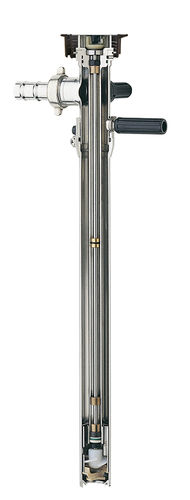

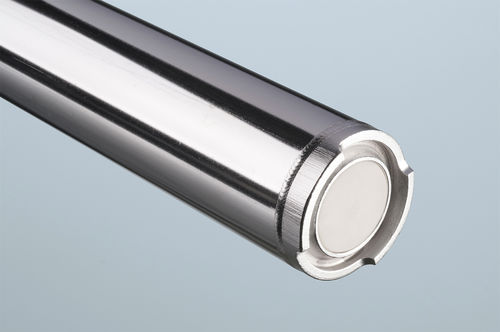

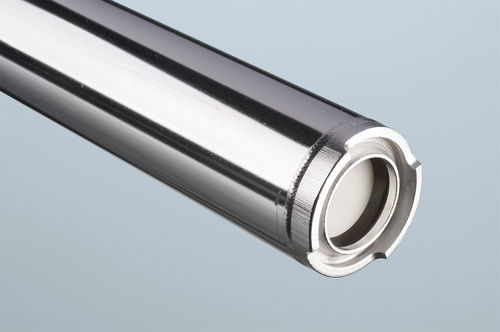

With backflow stop
Two adjusting levers to easily close the backflow stop
With mechanical seal for seal of inner tube
Metal core in the inner tube at the PP version
Versions for use in hazardous areas available
Grease-lubricated shaft bearing
Can be combined with various motors as required
Benefits
Optimal residual emptying with e.g. less than 0.05 l residual amount left in 200 l drum

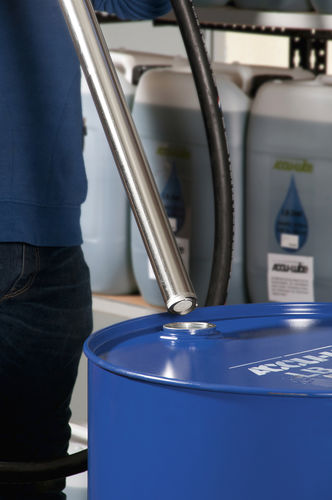

No tilting to totally empty the drum
Reduction of cleaning and waste disposal costs
No loss of medium when taking the pump from drum to drum
Optimal use of fluids
توضیحات:
Fluid
water, for chemicals, for lubricants, fuel
Operation
electric
Priming
semi-submersible
Technology
impeller
Mobility
stationary, mobile
Domain
industrial, for the chemical industry, for water treatment, for the pharmaceutical industry, for the petrochemical industry, agriculture, for the cosmetics industry
Applications
handling, drum, cleaning, IBC, for containers
Material
stainless steel, polypropylene, metal
Protection level
explosion-proof, explosion-proof, ATEX
Other characteristics
with mechanical seals, lubricated, combined, integrated
Flow
120 l/min(31.70065 us gal/min)
Head
26 m(85’03” )
