نام محصول:
پمپ طبل
نام انگلیسی:
Drum pump
برند:
FLUX-GERÄTE GMBH
مشخصات:

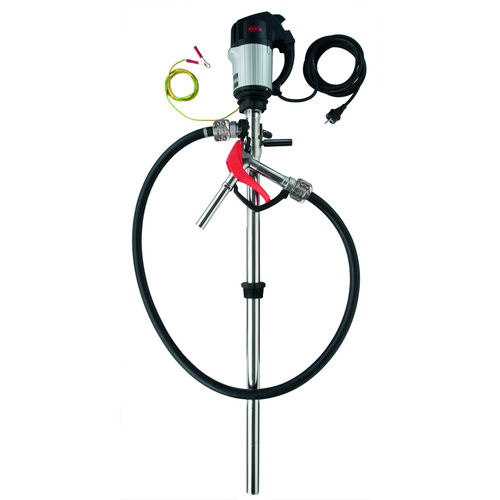

Pre-assembled pump kit for 99,98 % drum emptying. Due to integrated backflow stop less than 0.05 l residual amount in 200 l drum possible. For pumping thin media out of 200 l drums (immersion length 1000 mm) or IBCs (mmersion length 1200 mm). Comprising drum pump F 425 with mechanical seal, outer tube in stainless steel, commutator motor F 460, hose, hand nozzle and compression gland. Can also be used in hazardous areas.
Technical data:
Delivery head: max. 8 mwc
Viscosity: min. 1 mPas – max. 600 mPas
Outer tube diameter: max. 41 mm
Immersion length: 1000, 1200
Materials outer tube: Stainless steel
Media / Fluids: Fuels, Highly flammable media, Solvents, Petroleum products
Seal: with mechanical seal
Container: 1000 l IBC, 200 l drums
Product attributes
Pump with mechanical seal
Switch lever to close the backflow valve / foot valve
Pulsation-free transfer
Transfer against closed valve (e.g. hand nozzle) possible
Radial shaft sealing ring prevents intrusion of vapours and liquids into the coupling area
Benefits
Less than 0.05 l residual amount left in 200 l drum
Universally and flexibly applicable
Reduction of cleaning and waste disposal costs
Optimal use of fluids
No loss of medium when taking the pump from drum to drum
توضیحات:
Fluid
for solvents, oil, fuel
Operation
electric
Priming
semi-submersible
Technology
centrifugal
Mobility
stationary, mobile
Domain
industrial, for the chemical industry, agriculture
Applications
transfer, drum, IBC, for containers
Material
stainless steel
Fluid specification
for flammable fluids
Protection level
explosion-proof, immersion
Other characteristics
mechanical, with mechanical seals, portable, seal, integrated
Flow
35 l/min(9.24602 us gal/min)
Head
8 m(26’02” )
