نام محصول:
پمپ شیمیایی
نام انگلیسی:
Chemical pump U1F
برند:
WARREN RUPP
مشخصات:

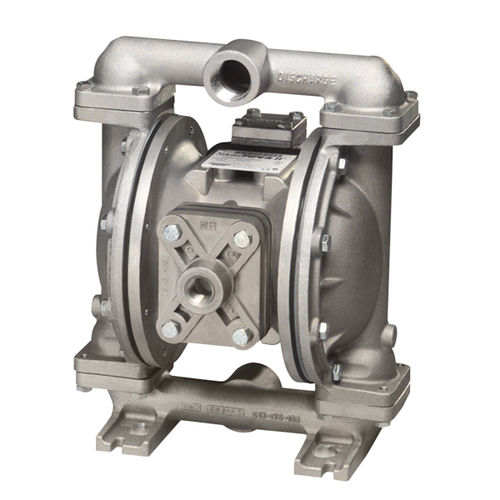

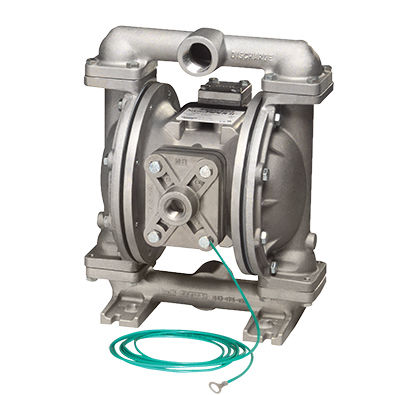

This 1″ UL-compliant pump is designed to meet UL79 standards for diaphragm pumps handling flammable liquids. The U1F AODD pump features all-aluminum construction with approved nitrile or virgin PTFE UL elastomers. This ATEX pump is fully groundable to prevent static discharge.
The SANDPIPER 1″ U1F metallic AODD pump provides portability and versatility. The durable, bolted construction of the U1F is superior to the clamped-construction pump, providing safe, leak-free performance. Material of construction options include: aluminum with UL-approved elastomers, including nitrile or PTFE for diaphragms and check valves. This pump is designed to be driven by compressed air or nitrogen.
The U1F is commonly used to transfer the following products:
Fuels and hydrocarbons
Gasoline
Diesel
Jet fuel/JP-8
Petroleum
#4 fuel oil or lighter
Ethanol
Motor oil
Heating oil
Oil
CBD
Common applications for the U1F include:
Mine and underground refueling
Flammable/combustible liquids transfer
Offshore/marine refueling
Aviation refueling
Heating oil transfer
Lubrication
U1F Features
Serviceability: The air distribution system (ADS) is one of the most frequently serviced parts of any AODD pump. Only SANDPIPER’s ESADS+ feature allows access to the complete ADS without removing the pump from service. Repair or clean in five minutes (versus 55 minutes for competitors).
توضیحات:
Fluid
for chemicals, oil, fuel, fuel oil, air
Technology
diaphragm
Mobility
stationary
Domain
laboratory
Applications
transfer, discharge, handling, distribution, service
Material
aluminum, PTFE
Fluid specification
flammable products
Protection level
ATEX
Other characteristics
heating
Flow
Max.: 45 us gal/min(170.34353 l/min)Min.: 0 us gal/min(0 l/min)
Pressure
8.6 bar(124.732 psi)
Head
70 m(229’07” )
Weight
24 kg(52.91 lb)
