نام محصول:
پمپ شیمیایی
نام انگلیسی:
Chemical pump HDB2
برند:
WARREN RUPP
مشخصات:

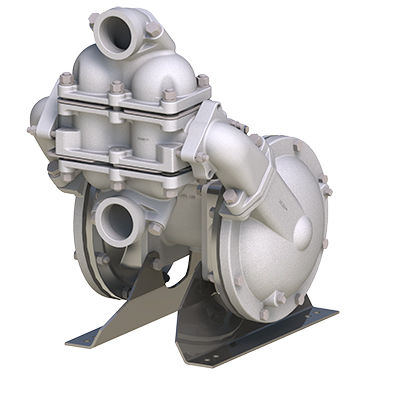

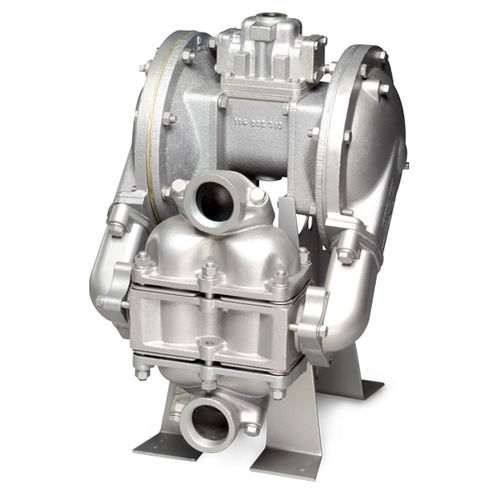

The exclusive SANDPIPER 2″ HDB2 Evolution Heavy-Duty Ball Pump is a mainstay in challenging customer applications, moving thin-highly viscous and small, solids-laden fluids.
The 2″ metallic pump provides excellent durability in demanding applications and is designed to withstand the most rugged and harsh ball valve environments.
The HDB2 is available in top- and down-porting options, which make installation easy and optimize performance on the pumped fluid. These porting configurations solve critical problems, such as solids and abrasives settling out of the liquid chamber into the ball check area. They are designed to outlast standard pumps.
SANDPIPER Heavy-Duty Ball Pump Features
These pumps are enhanced with extended-wear packages and are your optimal solution for abrasive-slurry applications. Features include:
Top-port option: For fluids containing floating solids, suspended solids or entrained gases. The discharge port is positioned above the center of the pump for easier evacuation and less build-up of solid material or gases.
Down-port option: For fluids containing settling solids. The discharge port is positioned below the center of the pump so solids settle in the elbow and are discharged. This helps reduce wear on the diaphragms and associated components
توضیحات:
Fluid
for chemicals, slurry
Technology
double-diaphragm
Mobility
stationary
Domain
industrial
Applications
discharge, suction, settling
Material
stainless steel, cast iron, aluminum, PTFE
Fluid specification
for high-viscosity fluids
Other characteristics
standard, small, heavy-duty, rugged, for fluids, floating, ball valve
Flow
Max.: 135 us gal/min(511.03059 l/min)Min.: 0 us gal/min(0 l/min)
Pressure
8.6 bar(124.732 psi)
Head
88 m(288’08” )
Weight
Max.: 84 kg(185.19 lb)Min.: 40 kg(88.18 lb)
