نام محصول:
پمپ شیمیایی
نام انگلیسی:

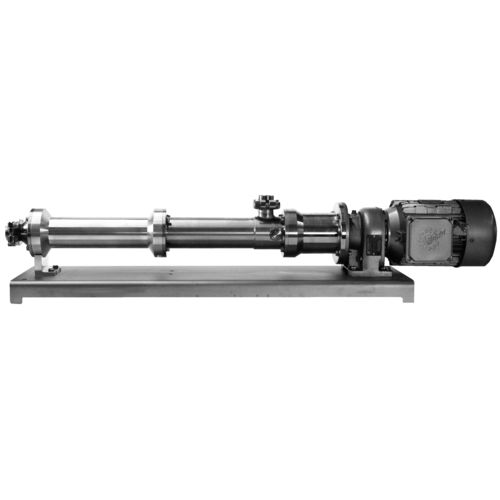

Chemical pump 3VMP36
برند:
ViscoTec Pumpen- u. Dosiertechnik GmbH
مشخصات:
ViscoTec dispenser 3VMP18, as a volumetric dispensing pump for larger volumes, ensures smooth and reliable product supplying of abrasive, high-filled or shear sensitive material – with a repeatability of +/- 1 %!
Absolutely precise, consistent and reliable dosing of a wide variety of materials and pumping of larger volumes. Thanks to the special rotor-stator geometry, a valve to prevent material from automatically flowing out is not required. Alternately opening chambers allow the gentle transfer and pulsation-free dispensing of product.
Your advantages:
– no dripping or stringing of product due to reverse-flow
– linear relation between drive speed and dosing volume
– constant dosing volume, also with density, viscosity and temperature fluctuations
– reliable dosing without heating of material
– driven by AC motor
– easy programming of quantity and speed
– low maintenance, quick dismantling
– self-priming, no (or low) product input pressure required (depends on material)
Application:
– dot application, bead application, variable quantities possible
– dosing of all low and high viscosity adhesives and sealants (not anaerobic products)
– particularly suitable for abrasive, high-filled or shear sensitive material
– also used in barrel emptying systems
Technical data:
– dosing volume: ~ 65 ml/rev.
– min. dosing quantity: 8 ml *
– operating temperature: +10° to +100°C *
– material temperature: -20° to +100°C *
– max. speed: 125 rpm *
– max. permissible torque: 70 Nm
– max. dosing pressure: 40 bar *
– max. supply (input) pressure: 40 bar *
– weight: approx. 25 kg
* depends on material
توضیحات:
Fluid
for chemicals, oil
Operation
electric
Priming
self-priming
Technology
worm gear
Domain
for the chemical industry, for the automotive industry
Applications
circulation, for automatic machines, handling, metering, for precision applications, for industrial applications, transfer, filling, high-temperature, for emulsions, feed, distribution
Material
stainless steel
Fluid specification
for abrasive fluids, for low-viscosity fluids, for high-viscosity fluids, for viscous fluids
Pressure
40 bar(580.151 psi)
