نام محصول:
پمپ شیمیایی
نام انگلیسی:

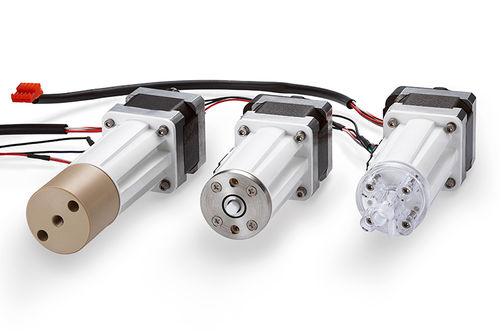

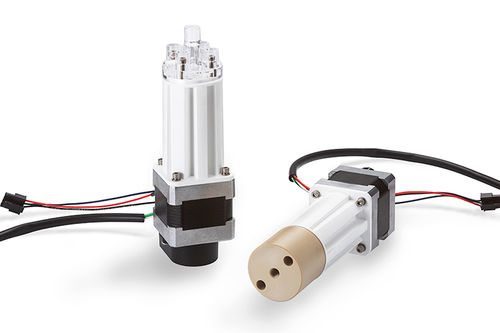

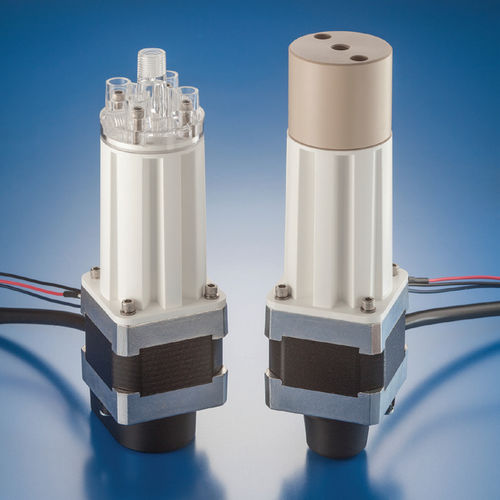

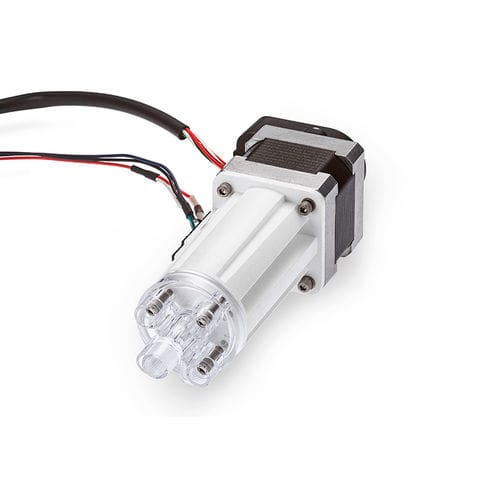

Chemical pump LPD series
برند:
THE LEE COMPANY
مشخصات:
LPD Series variable volume dispense pumps are a new generation of stepper motor driven, positive displacement pumps designed to provide unparalleled reliability a nd performance at an economical price. The LPD Series are available in standard dispense volumes of 50, 250, 1000, and 3000 µL, with ¼-28 ports in either a PEEK or PMMA (acrylic) port head. Featuring a flexible and maintenance free design, LPD Series pumps can be positioned in the ideal fluidic location within a system, regardless of accessibility. All designs are equipped with a home sensor to establish the end of stroke, and high-performance models include an optical motor encoder for applications requiring feedback on piston movement. Manifold mount and dual-seal configurations can also be made available upon request.
Features:
Maintenance Free Design
Porting: ¼-28 Connection
Wide Range of Dispense Volumes Available
High Dispense Accuracy and Repeatability
Home Sensor and Encoder Options Available
10 Million Cycle Life
توضیحات:
Fluid
for chemicals
Operation
stepper motor-driven
Priming
self-priming
Technology
diaphragm
Mobility
stationary
Domain
for the petrochemical industry, laboratory, medical, for the automotive industry
Applications
volumetric dispensing, high-precision
Other characteristics
compact, standard, high-performance, custom
Pressure
60 psi, 95 psi
Input diameter
0.3 in
Width
42.9 mm(1.69 in)
Height
43 mm(1.69 in)
