نام محصول:
پمپ شیمیایی
نام انگلیسی:

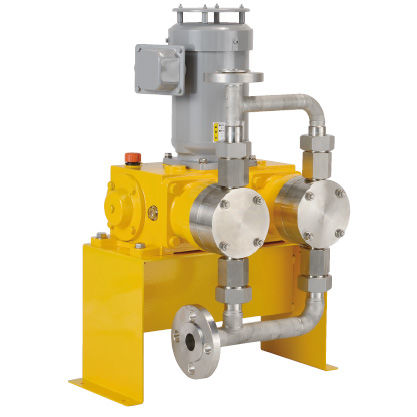

Chemical pump PL series
برند:
TACMINA CORPORATION
مشخصات:
Features
No Reduction of the Flow Rate Even With Pressure Fluctuation.
Integrated backflow prevention means that the flow rate will not be reduced even when the pressure fluctuates. This is ideal for applications that require highly-accurate volume delivery such as mixing and coating pharmaceuticals and those that require accurate mixing ratios.
No Need for Dampener or Accumulator
Accumulators and other devices used generally reduce fluctuation have a slow response and, therefore, pressure control is indispensable. Smoothflow Pumps are quick to respond and there is no need for cumbersome pressure control and the associated maintenance for these devices..
Great Reduction in Potential Cause of Problems
A major source of problems is the process of stirring and mixing in the tank. This can be eliminated, significantly reducing the chance of accidents and failures.
Cost and Space Saving With Simpler Piping
Compared to conventional pumps that introduce pulsation, pulseless Smoothflow Pumps enable smaller diameter piping to be used on the discharge side. This reduces cost and the loss of transferred chemicals.
Excellent Responsiveness
In addition to pulseless operation, Smoothflow Pumps offer an instant response to flow rate change. Unlike the pulsation dampening achieved by a conventional air chamber, Smoothflow Pumps discharge immediately upon starting the operation and no liquid escapes when the operation is stopped, allowing for precise adjustment of supply volumes and mixing ratios.
توضیحات:
Fluid
for chemicals
Operation
electric
Technology
plunger
Domain
industrial
Applications
for control, mixing, process, metering, for precision applications, high-pressure, injection
Flow
Max.: 31 l/min(8.18933 us gal/min)Min.: 0.011 l/min(0.00291 us gal/min)
Pressure
Max.: 100 bar(1,450.377 psi)Min.: 12 bar(174.045 psi)
