نام محصول:

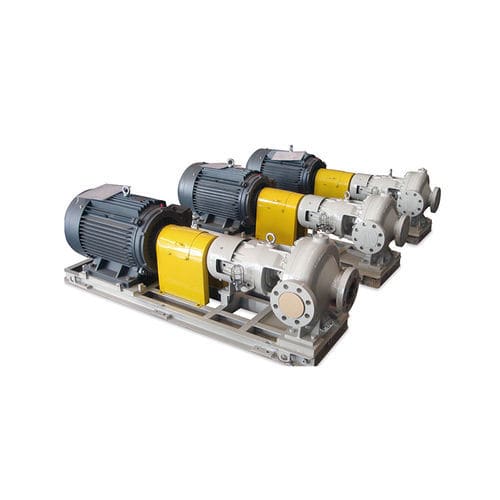

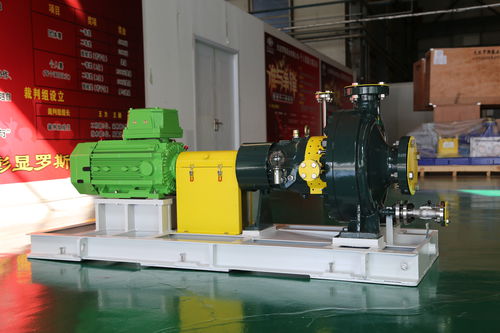

پمپ شیمیایی
نام انگلیسی:
Chemical pump SOF/SOU
برند:
SOURCE Pumps & SYSTEMS Co., Ltd.
مشخصات:
Single-stage radial impeller radially split volute, horizontal, centerline mounted. Axial suction, radial discharge, suction and discharge flange pressure rating is the same. The axial force in the pump is balanced by the optimally designed sealing ring and balance hole, the paired tapered roller bearings bear the residual axial force, and the rigid shaft design is heavy. The shaft seal and auxiliary system piping configuration adopts AP1682 standard mechanical seal and flushing scheme.
◉ Application:
Clean or polluted, low or high temperature, chemically neutral or corrosive liquids;Refinery, petrochemical, chemical industry, coal chemical, desalination power station, fertilizer, pulp and paper, offshore platform and general industrial applications, especially suitable for inlet high pressure conditions.
توضیحات:
Fluid
for chemicals
Operation
with electric motor
Technology
impeller
Mobility
stationary
Domain
industrial, chemical
Applications
discharge, suction, for industrial applications
Other characteristics
suction, mechanical, standard, single-stage, flange, axial, radial, seal
Flow
2,600 m³/h(91,818.13348 ft³/h)
Pressure
10 MPa, 15 MPa
Head
300 m(984’03” )
Fluid temperature
Min.: -80 °C(-112 °F)Max.: 450 °C(842 °F)
