نام محصول:
پمپ شیمیایی
نام انگلیسی:

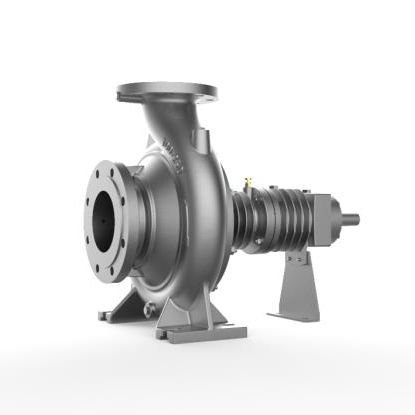

Chemical pump TKF-K series
برند:
SEMPA LTD
مشخصات:
Design Features
• TKF-K series pumps has designed for pumping not including big particulars high temperature liquids.
• TKF-K series pumps are air cooled type pumps. Pump and motor is connecting by coupling. It gives yours avantages for easy disassembling.
• Pump diamensions are acceptable TS EN 733 standard.
• Input and Output Flange Diamesions are acceptable ISO 7005-2/PN 16.
• TKF-K series is off the wheel and has balancing aileron behind the wheel to minimize ta axial loads, dynamic loads are balanced within.
• Sealing is provided with high temperature resistant mechanical seal.
• Easy dissasamble to pump and change impeller,bearings and seals.
Technicial Specifications
• Capacity : Up to 450m³/h
• Head : 100 m
• Speed : Up to 2900 rpm – (60Hz)*
• Operating Temperature : Until 320 °C
• Casing Pressure (Pmaks) : 16 bar
Usage places
• Chemical and Petrochemical Plants
• Paper Factories
• Sugar Factories
• Food and Medicine Factories
• Plastic, Rubber and Synthetic Fiber Factories
• Cooking and Heating Ovens (Furnaces)
• Textile and Leather Industry
• Iron-Steel Industry
• Paint Industry
• Asphalt and Bitumen Processing Industry
• Woodworking and Furniture Industries
• Heat Transfer Facilities Above 100°
توضیحات:
Fluid
for chemicals, oil
Operation
with electric motor
Technology
centrifugal with volute
Domain
industrial, chemical, for the food industry, for the petrochemical industry, for the metallurgical industry, for the paper industry, for the textile industry
Applications
transfer, high-temperature
Other characteristics
single-stage, horizontal mount, with mechanical seals, flange, heating
Flow
Min.: 0 m³/h(0 ft³/h)Max.: 450 m³/h(15,891.60002 ft³/h)
Pressure
16 bar(232.06 psi)
Head
Min.: 0 m(0’00” )Max.: 100 m(328’01” )
