نام محصول:
پمپ شیمیایی
نام انگلیسی:
Chemical pump MDTC series
برند:
Seepex
مشخصات:
For pumping highly viscous products with a low degree of flowability.

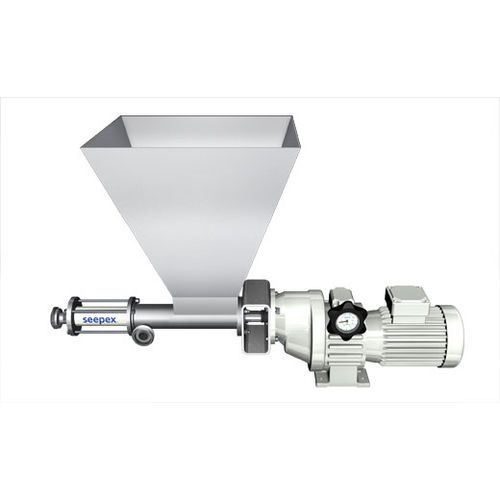

Open hopper pump with cylindrical/conical compression zone and auger feed screw
Open aseptic fork joint made up of only two components
Manufactured in keeping with the regulations of the 3A-Sanitary Standard
FDA approval
Conveying capacities: 0.5 l/h – 500 l/h | 0.132 USGPH – 132 USGPH
Pressures: up to 24 bar | 360 PSI
The MDTC range features a feed hopper with a cylindrical/conical compression zone. Conveying media with a low degree of intrinsic flowability or with none at all are fed to the conveying elements rotor and stator through the auger feed screw on the coupling rod. Optimum filling of the conveying chamber is achieved through the priming pressure generated in the compression zone. The pumps of the MDTC range are equipped with open joints of the MDC range and comply with the regulations of the 3A-Sanitary Standards of the USA.
توضیحات:
Fluid
for chemicals
Operation
electric
Priming
self-priming
Technology
screw
Domain
chemical, sanitary
Applications
metering, conveying, filling
Fluid specification
for aggressive media
Other characteristics
open
Flow
Max.: 500 l/h(132.08603 us gal/h)Min.: 0.5 l/h(0.13209 us gal/h)
Pressure
24 bar(348.091 psi)
