نام محصول:
پمپ شیمیایی
نام انگلیسی:
Chemical pump EPSILON
برند:
NOV Inc.
مشخصات:

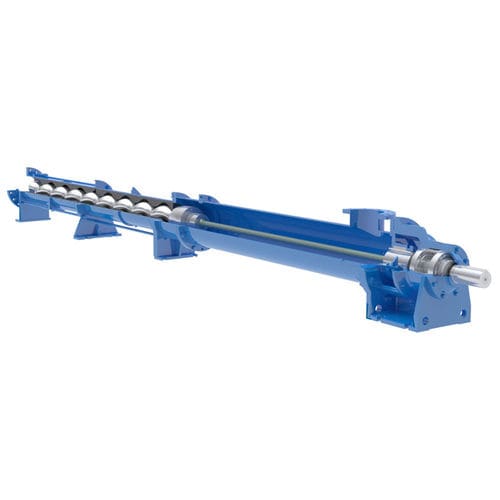

The Epsilon Pump is a line of technically engineered progressing cavity pumps designed to give least whole life costs and reduced spares requirements.
The Epsilon Pump incorporates a PowerDrive™ transmission which eliminates the need for a double universal joint. This competitively priced pump is reliable and efficient when handling abrasive materials, high viscosity fluids, and high head applications.
Features
• Available in cast iron or stainless steel, with a choice of rotor and stator materials. Other materials available on request for difficult applications, i.e. super duplex stainless steel
• High pressure/long haul pumping eliminates the need for a series of pumps when pumping over long distances or with high head requirements
• Inspection cover available for applications where rag content is a problem
• Gentle pumping action minimizes shear and crush damage
• PowerDrive™ transmission eliminates wearing components
• Available in standard geometry or extended pitch
• Can be installed vertically or horizontally
• Low running speeds ideal for abrasive applications
Typical Applications
• Primary and secondary sludge
• Mineral processing
• Industrial chemicals, detergents,
• Polyethlene glycol
• Crude oil, hydraulic oil, waste oil
• Starches, liquiefied potato peel,
• Cocoa butter
• Natural and synthetic latex
• Mine dewatering
• Milk curds, sauces, fruit juices
• Paper stocks
• Gypsum and silicate
• Kaolin slurry, coating slurry
توضیحات:
Fluid
for chemicals, slurry, for food products, oil
Technology
progressing cavity
Mobility
stationary
Domain
industrial, for the chemical industry, for the food industry
Applications
high-pressure, handling, dewatering
Material
stainless steel, cast iron
Fluid specification
for paper stock
Other characteristics
line
Flow
Max.: 1,850 us gal/min(7,003.0118 l/min)Min.: 0 us gal/min(0 l/min)
Pressure
Max.: 350 psiMin.: 0 psi
Fluid temperature
Max.: 212 °F(100 °C)Min.: 14 °F(-10 °C)
